Molten Steel Ladle Transfer Car / Electric Flat Car 270 - 600 Wheel Diameter Mm
Hot molten steel ladle electric rail flat transfer cart with High temperature resistance material
Hot molten steel ladle electric rail flat transfer cart with High temperature resistance material running on rail, simply speaking, The steel and iron plant battery powered hot molten steel ladle electric rail flat transfer cart is a rail electric cart and running on the rails.due to its power supply, the rail ladle transfer cart get rid of the limitation of cable, and has no strict requirement for the rails. The kinds of hot molten steel ladle electric rail flat transfer cart running on rail can be operated via remote control, which makes the hot molten steel ladle electric rail flat transfer cart more convenient and safety. What’s more, due to this power, hot molten steel ladle electric rail flat transfer cart can run without limited distance as long as charged fully!
Advantages and functions of the Hot molten steel ladle electric rail flat transfer cart
1.Ladle electric rail flat transfer cart with High temperature resistance material.
2.Ladle electric rail flat transfer cart running on rail and no
3.The traction motor of the ladle electric rail flat transfer cart is designed in slowly start and stop to reduce the inertia of the ladle transfer cart and avoid molten steel or slag from splashing.
4.In order to prevent the high temperature,the ladle electric rail flat transfer cart's body is provided with heat insulation material.
5.Usually two motors are prepared of the ladle electric rail flat transfer cart,so when one is damaged by the ladle's high temperature,the other can be used to continue the work.
6.The automatic stop device is installed inside the ladle electric rail flat transfer cart body.
7.The traction motor of the ladle electric rail flat transfer cart is designed to start and stop slowly, free from turning and road conditions
8.The kind of ladle electric rail flat transfer cart running on rail can be Applied in various occasions as high temperature, easy explosion, ponding, dust, scrap iron...
9.DC motor controlled, The speed can be adjusted.
10.The running distance of this kinds ladle electric rail flat transfer cart running on rail is not limited.
11.This kinds of ladle electric rail flat transfer cart running on rail is battery operated, so only charged fully, can it run freely without limited distance.
Product Parameter of the Hot molten steel ladle electric rail flat transfer cart
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
The Scheme of the Hot molten steel ladle electric rail flat transfer cart

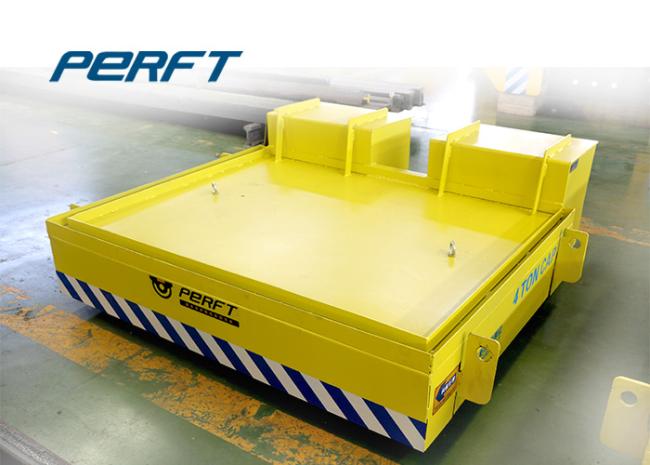

The details of the Hot molten steel ladle electric rail flat transfer cart

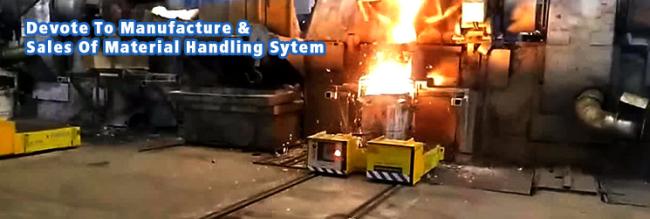

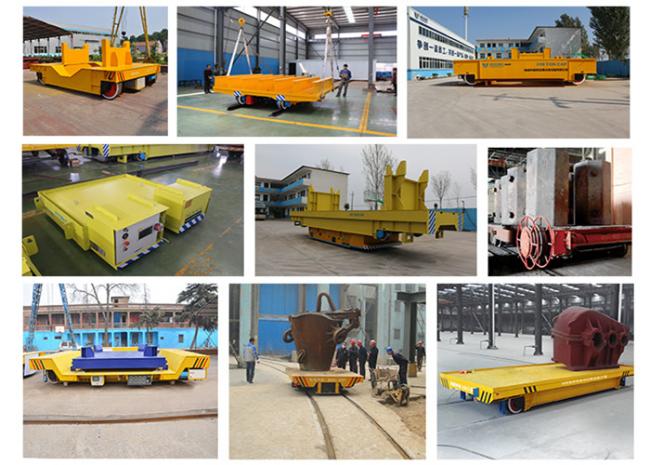

Product Application of the Hot molten steel ladle electric rail flat transfer cart
Hot molten steel ladle electric rail flat transfer cart with High temperature resistance material is applied range includes: mould field, car field, steel, iron, heavy industry, light industry, chemical, mine, ship, project, spaceflight, coal, spray booth, nuclear energy, hydraulic engineering, etc. For material transport: bolier, coil items, pump, transformer, shaft, drum, steel ladle, steel structure, steel pipe, mould, beam, container, heavy equipment, Aluminum product, compressor, polycrystalline silicon, motor, coil, scrap, pallet...
Packing And Delivery of the Hot molten steel ladle electric rail flat transfer cart
