Scissor Hydraulic Lifting Coil Transfer Car Rail Inner Gauge 1200 - 2000 Mm

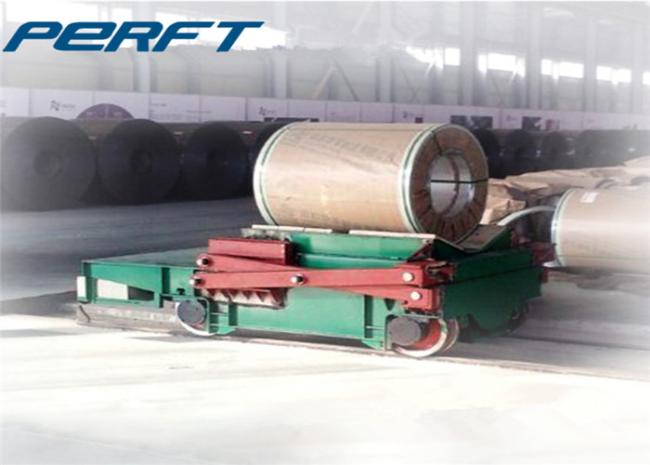

50 ton scissor hydraulic lifting coil rail transfer car for factory steel coils transportation
The KPD scissor 50 ton hydraulic lifting coil rail transfer car for factory steel coils transportation is powered by battery,and the battery supply power of the scissor hydraulic lifting coil rail transfer car for factory steel coils transportation to the DC motor, which is installed inside of coil transfer car body.Through the order of start, stop,forward,back,speed governing,etc, electrical control system command the order to DC motor to drive scissor hydraulic lifting coil rail transfer car for factory steel coils transportation working.With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application. This kind of scissor hydraulic lifting coil rail transfer car for factory steel coils transportation can run between two perpendicular tracks or L-shape track or S-shape track or curved track.
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Details
Advantages and functions
1.The scissor hydraulic lifting coil rail transfer car can run between two perpendicular tracks or L-shape track or S-shape track or curved track.
2.The scissor hydraulic lifting coil equippment can be added according to your requirements.
3.The scissor hydraulic lifting coil rail transfer car can be add dumping device; High efficiency, low energy consumption.
4.The scissor hydraulic lifting coil rail transfer car can used for frequently working condition,and no limitation of the running distance.
5.The battery power scissor hydraulic lifting coil rail transfer car is applied in mold factory, shipyard, warehouse to transfer large dimension steel mold /steel structure or other heavy materials.
6.The control of the scissor hydraulic lifting coil rail transfer car is remote control,and easy operation.
7.The V-frame and U-shape device can be added on the platformin order to protect the coils material falling down from the scissor hydraulic lifting coil rail transfer car.
8.1.All the scissor hydraulic lifting coil rail transfer car can be customized according to your requirements.
9.The roller shape can be added to the scissor hydraulic lifting coil rail transfer car.
10.The supply power of the coil rail transfer car can be customized according to your working environment.
