Motorized Steel Coil Transfer Car For Factory Aluminum Coils Cargo Transportation
U-shape or roller cable reel motorized steel coil transfer car on rails for factory aluminum coils cargo transportation
The whole coil transfer car of henan perfect handling equipment is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other coil transfer cars,the U-shape or roller cable reel motorized steel coil transfer car on rails for factory aluminum coils cargo transportation has a large size But U-shape or roller cable reel motorized steel coil transfer car travels flexibly. The driving wheel and load wheel of U-shape or roller cable reel motorized steel coil transfer car is high strength PU wheel. U-shape or roller cable reel motorized steel coil transfer car is wear-resistance, and has low maintain cost. The functions of the U-shape or roller cable reel motorized steel coil transfer car including 360 degree turning, go forward and backward,turn left and right, adjust speed button, indicator light, electric indicator light and other control buttons.
Advantage and functions of the U-shape or roller cable reel motorized steel coil transfer car on rails for factory aluminum coils cargo transportation
1.The U-shape can be added of the cable reel motorized coil transfer car according to your requirements.
2.The roller can be added of the cable reel motorized coiltransfer car according to your requirements.
3.The table size,capacity can be customized.
4.The hydraulic lifting equipment can be added to the cable reel motorized steel coil transfer car.
5.The V or U shape of the cable reel motorized steel coil transfer car use Aluminum Motorized Coil Transfer Cart can be remove freely.
6.The supply power of the cable reel motorized steel coil transfer car can be customized according to your working environment.
7.The cable reel motorized steel coil transfer car use Aluminum Motorized Coil Transfer Cart body platform equipped waterproof material.
Technical Table of the U-shape or roller cable reel motorized steel coil transfer car on rails for factory aluminum coils cargo transportation
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | |
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | |

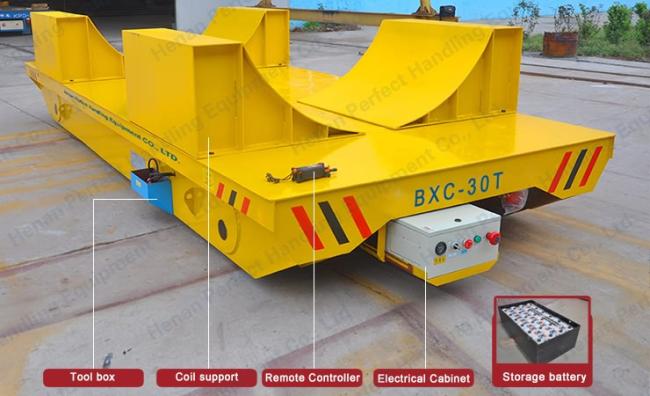

Main Componences of the U-shape or roller cable reel motorized steel coil transfer car on rails for factory aluminum coils cargo transportation

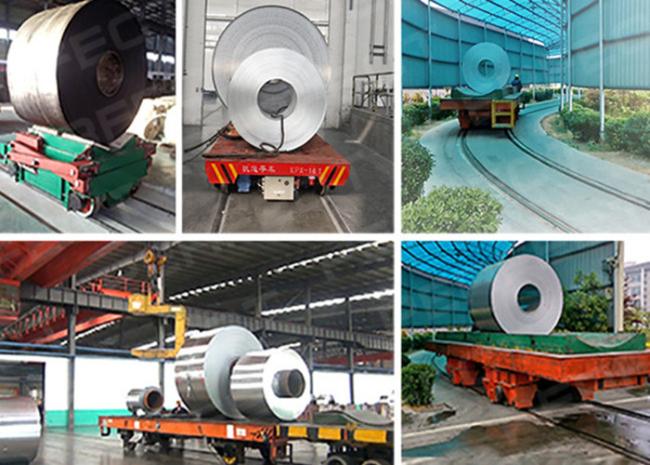

Application and Usage of U-shape or roller cable reel motorized steel coil transfer car on rails for factory aluminum coils cargo transportation

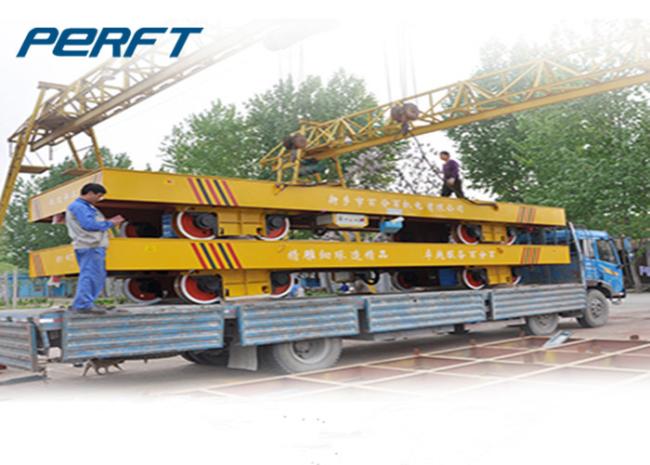

Packaging & Shipping of U-shape or roller cable reel motorized steel coil transfer car on rails for factory aluminum coils cargo transportation
