Safe Battery Transfer Cart , Electric Transportation Rail Heavy Duty Cart
20 ton China Made Electric factory Transportation Battery Trackless Transfer Cart
The 20 ton China Made Electric factory Transportation Battery Trackless Transfer Cart is a cable power transfer machine powered by cable reels which is installed at the bottom of the trackless transfer cart. The 20 ton China Made Electric factory Transportation Battery Trackless Transfer Cart is designed for transporting cargoes or equipment from one bay to another in factory, from indoor to outdoor. 20 ton China Made Electric factory Transportation Battery Trackless Transfer Cart has widely applied in the industry transportation field, our company can designed the to meet our customers' demand.
Advantages
•The electric Trackless Transfer Cart is more suitable for high using frequency
•The electric Trackless Transfer Cart can be Anti-high temperature, Anti-high explosion;
•The assemble line Trackless Transfer Cart with Simple operation;
•The electric Trackless Transfer Cart has features of stable start, big starting power, long lifetime;
•Safety and flexibility;
•Running distance of the Trackless Transfer Cart is unlimited;
•High efficiency ;
•No restriction of the running time

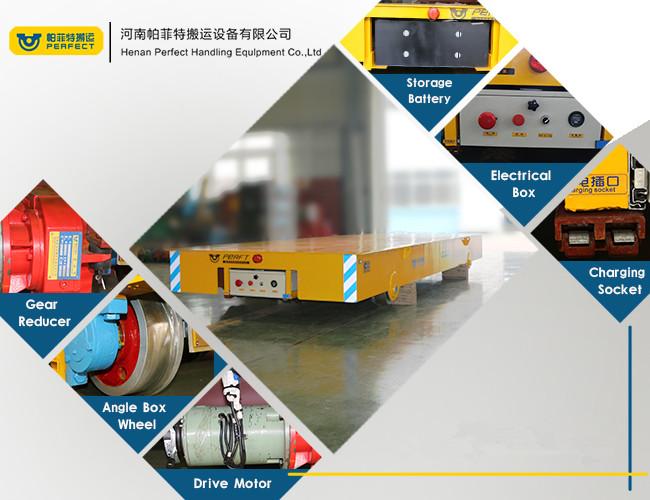

Details
Product parameters
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
Application of 20 ton China Made Electric factory Transportation Battery Trackless Transfer Cart
The 20 ton China Made Electric factory Transportation Battery Trackless Transfer Cart is suitable for various occasions, for example, steel field, forged field, mold field, Heavy Industrial, Light Industrial, paper making field, Construction Machinery maker, Shipyard, Port Cargo Yard, warehouse, assembly line, Spray booth, Air and Space etc.
