Rail Electric Flat Crossover Transfer Custom Material Handling Carts Tow Cable Powered
Rail Electric Flat Crossover Transfer Custom Material Handling Carts Tow Cable Powered

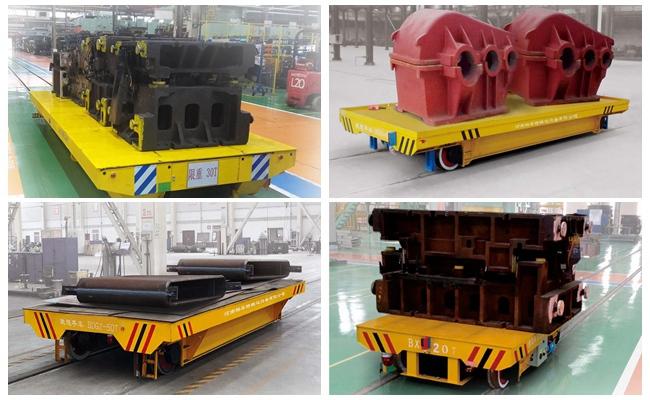

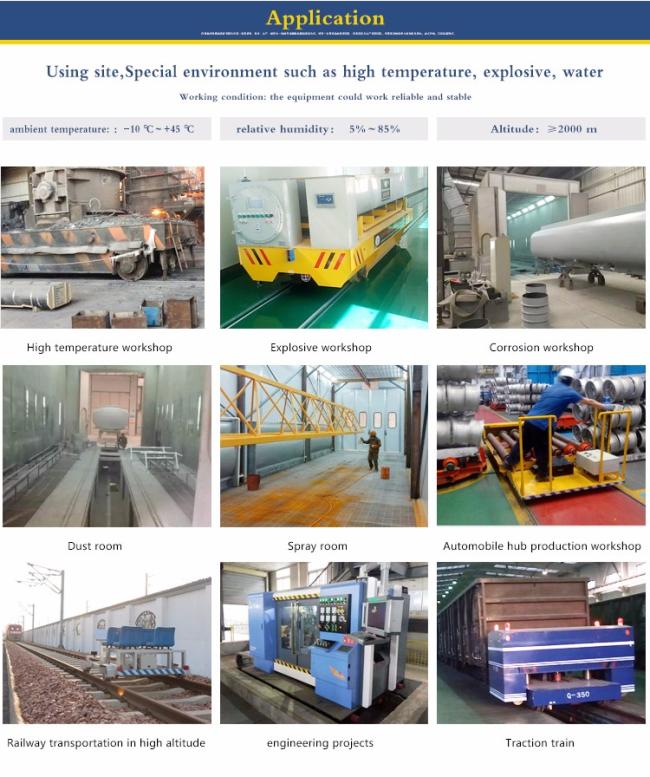

The BJT Series rail electric flat crossover transfer cart is powered by cabled drum. The power source 380V alternating-current is supplied to the traction motor by cable. Cable is collected and released by coiling device mounted underneath the car. The rail electric flat crossover transfer cart can realize full automatic operation by PLC system. The rail electric flat crossover transfer cart can be applied in the environment such as severe environment,high temperature, anti-explosive etc. Simple structure and low cost make it popular for workshop transportation. The cable rail electric flat crossover transfer cart can be applied in the occasion with any loading capacity and high using frequency. If the running distance is beyond 50m, the cable flat railroad car needs to install cable arranger to help with cable rolling. The max running distance is up to 200-400m.
NOTES:
- Flat deck or fixtures for transporting special payload;
- Custom deck configurations may include lift, tilt, or rotate function;
- Payload from 1 ton to 300 tons;
- Fixed speed or variable speed capabilities;
- On board charging is available if battery drives;
- With forward or backing driving;
- Options for automatic control;
- Available safety equipment includes horn, lights, emergency stop, bumpers and detector.
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
