Heavy Duty Electric Transfer Cart On Rail For Special Occasion Handling
Price:
USD 3000~7200 set
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
electric transfer cart mounted on the rail
Product Description
electric transfer cart mounted on the rail for special occasion handling
Heavy duty electric transfer cart mounted on the rail for special occasion handling is based on our world renowned workshop large cargo handling electric transfer cars on rail for workshops transfers and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our electric transfer cart mounted on the rail for special occasion handling is available in a number of configurations specifically designed to suit the needs of our customers.
Technical Parameters
| Model | BJT-2t | BJT-20t | BJT-50t | BJT-100t | BJT-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

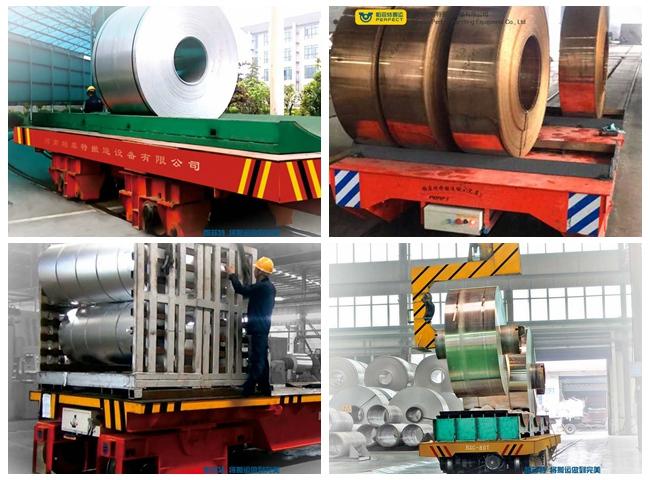

Detailed Image Of electric transfer cart mounted on the rail
Functions & Advantages Of electric transfer cart mounted on the rail
- The cable reel powered transfer trolley is Anti-high temperature,Anti-high explosion;
- The cable reel powered transfer trolley is powered by cable drum;
- With lifting holes, cable reel powered trailer is convenient to shipment;
- The cable reel powered transfer trolley has a feature of stable start, big starting power, long lifetime;
- The cable reel powered transfer trolley can run on the C-form track or S-form track;
- Safe and convenient operation is available for cable reel powered trailer;
- High using frequency for cable reel powered trailer.
Application Site
The electric transfer cart mounted on the rail is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).
