Cable Reel Power Motorized Transfer Trolley , Custom Material Handling Carts

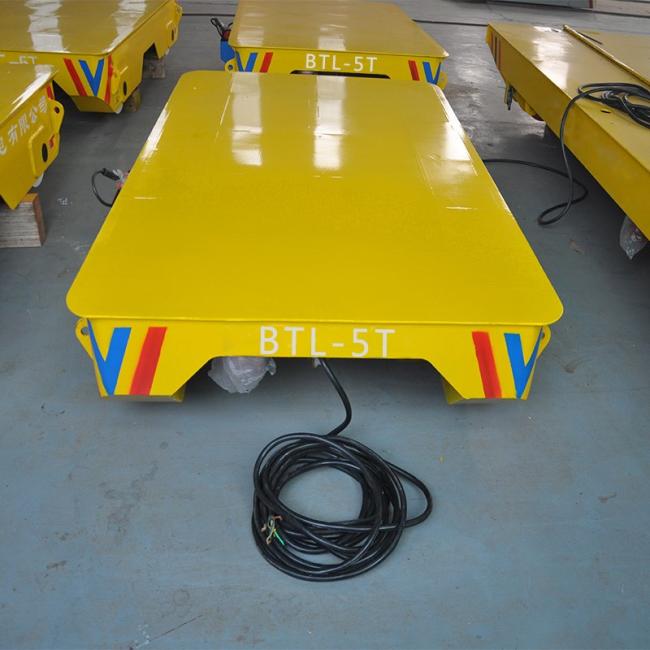

cable reel power motorized transfer trolley for machine parts handling
Heavy duty cable reel power motorized transfer trolley for machine parts handling is based on our world renowned workshop large cargo handling electric transfer cars on rail for workshops transfers and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress.Our cable reel power motorized transfer trolley for machine parts handling not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. Our company passed ISO9001 Quality management system and got the CE, ISO, SGS certificate. Meanwhile, we also got 8 national patents which are S type rail turning cart utility model patent, S type rail turning cart appearance patent, rail electric forklift utility patent, electric rail tractor utility patent, steerable Transfer Car Exportedutility patent, lifting electric cart utility patent, scissor hydraulic lifting electric cart patent, whole ring rail electric flat car’s wheel and flat car patent.
.
| Model | BTL-2t | BTL-20t | BTL-50t | BTL-100t | BTL-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) |
0-20
|
|||||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
- 1. Moving the steel plate from storage area to cutting process area by crane;
- 2. According to the cutting drawing cutiting steel plate by the numercial control cutting machine;
- 3. The mobile welding machine is used for precise welding of diferent parts of the frame;
- 4. Fine grinding and weld inspection of the weld joint;
- 5. For every car primer spray, toccat, perfect antirust, ensure th ebeauftiful appearance;
- 6. Installation of the whole internal parts of the wheel and the car body;
- 7. Commissioning the vehicle operation and electrical parts, then test after completion of commissoning:
- 8. Zero load test and load test before shipping.
