Battery Operated Platform Rail Transfer Cart For Materials Handling
battery operated platform cargo transfer carts on rail manufacturer
Product Description

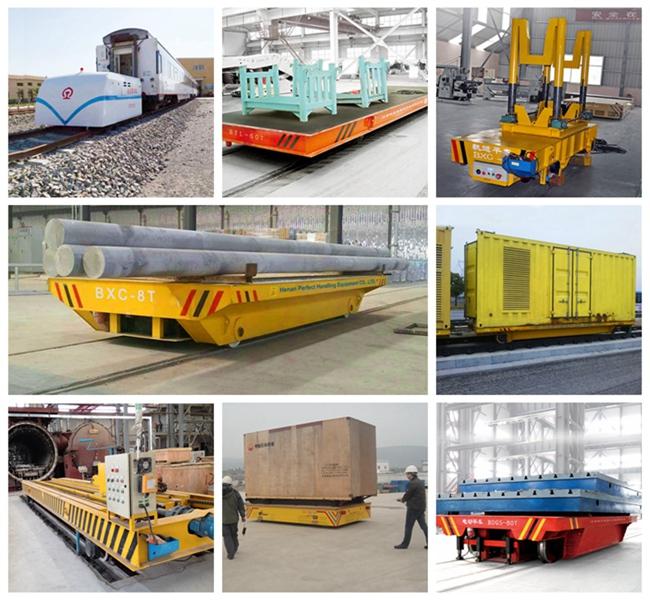

The battery operated platform cargo transfer carts on rail manufacturer is our most popular trolley. It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. This battery operated platform cargo transfer carts on rail manufacturer has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay. Our standard heavy duty design is controlled by a hand held push button controller with small turning radius.
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) |
0-20
|
|||||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
- 1. Moving the steel plate from storage area to cutting process area by crane;
- 2. According to the cutting drawing cutiting steel plate by the numercial control cutting machine;
- 3. The mobile welding machine is used for precise welding of diferent parts of the frame;
- 4. Fine grinding and weld inspection of the weld joint;
- 5. For every car primer spray, toccat, perfect antirust, ensure th ebeauftiful appearance;
- 6. Installation of the whole internal parts of the wheel and the car body;
- 7. Commissioning the vehicle operation and electrical parts, then test after completion of commissoning:
- 8. Zero load test and load test before shipping.
