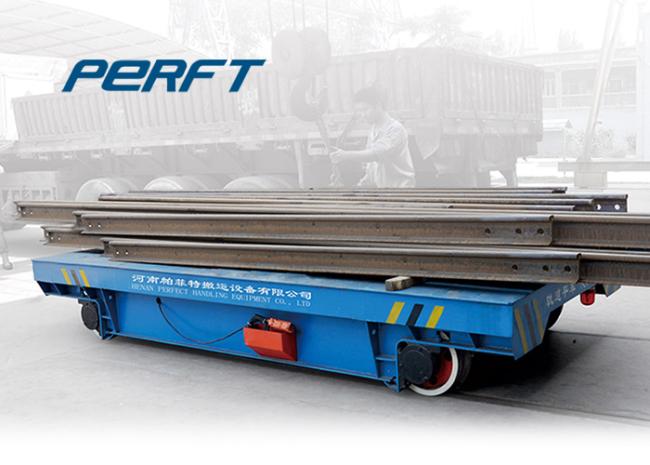

Motorized Flat Bed Transport Wagon , Industry Transfer Rail Automated Guided Vehicles
motorized flat bed transport wagon for industry transfer rail vehicles
motorized flat bed transport wagon for industry transfer rail vehicles, it makes the AC electricity power is transformed into AC 36v two-phas and are respectively connected to the two rails.Then the motorized flat bed transport wagon for industry transfer rail vehicles the AC 36v on rail into the electrical appliance box at the bottom of the motorized flat bed transport wagon for industry transfer rail vehicles , And then the AC 36v is transformed into DC 36v and then control the DC motor through the DC control system to make the motorized flat bed transport wagon for industry transfer rail vehicles tart, stop, go forward and backward and adjust the speed and so on.
|
Model
|
BXC-2T
|
BXC-5T
|
BXC-20T
|
BXC-50T
|
BXC-100T
|
|
Rated Load(T)
|
2
|
5
|
20
|
50
|
100
|
|
Length(mm)
|
2000
|
3500
|
4000
|
5500
|
6500
|
|
Width(mm)
|
1500
|
2000
|
2200
|
2500
|
2800
|
|
Height(mm)
|
450
|
500
|
550
|
650
|
900
|
|
Wheel Base(mm)
|
1200
|
2500
|
2800
|
4200
|
4900
|
|
Rail Inner Gauge(mm)
|
1200
|
1435
|
2000
|
||
|
Wheel Diameter(mm)
|
270
|
300
|
350
|
500
|
600(heavy)
|
|
Ground Clearance(mm)
|
50
|
75
|
|||
|
Running Speed(m/min)
|
0-25
|
0-20
|
|||
|
Motor Power(Kw)
|
1
|
1.2
|
2.2
|
5
|
10
|
|
Max Wheel Load(KN)
|
14.4
|
25.8
|
77.7
|
174
|
343.8
|
|
Reference Weight(t)
|
2.8
|
3.6
|
5.9
|
8
|
14.6
|
|
Recommedded Rail Model
|
P15
|
P18
|
P24
|
P43
|
QU100
|
