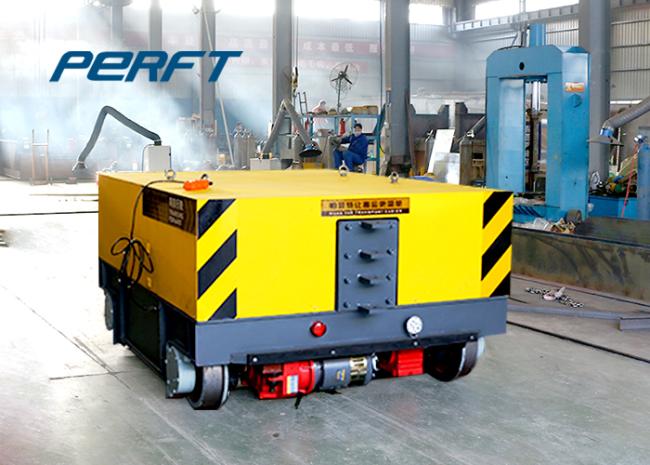

30 T Rail Transfer Cart Special For Traction And Dragging Of Large Machinery
30 T Rail Transfer Cart Special For Traction And Dragging Of Large Machinery
Description
30t rail powered transfer flat cart special for traction and dragging of large machinery-transfer trucks specializing in large-scale mechanical traction and towing not only have their own characteristics in large-scale mechanical towing, but also have great achievements in material handling.
Functions of 30t Rail powered transfer flat cart:
I:Supply way of the 30t Rail powered transfer flat cart:Rail powered
II.Driving way of the 30t Rail powered transfer flat cart:Differently drive
III.Wheel material of the transfer cart:Rubber&Polyurethane material
V.Running routine of the flat rail transfer car:Straight or curve line

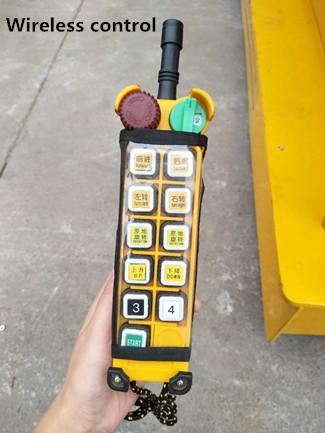

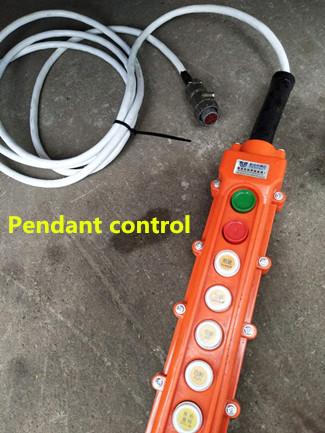

IV:Remote control:Wireless control&pendant control
Product parameters
Technical parameters of BXC-30T (Customizable)
Modle | BXC-10T | BXC-30T | BXC-50T | BXC-80T | BXC-100T | BXC-150T |
Table Size (m) | 3.4*2.1*0.5 | 4.6*2.2*0.6 | 5.7*2.5*0.65 | 6.1*2.6*0.8 | 6.5*3.8*0.9 | 10*3.2*1.2 |
Power | Maintenance Free Battery | |||||
Rail inner Gauge | 1435mm | 1435mm | 1435mm | 1800mm | 2000mm | 2000mm |
Wheel Dia. | 350mm | 400mm | 500mm | 600mm | 600mm | 600mm |
Running Speed | 0-25m/min | 0-25m/min | 0-25m/min | 0-25m/min | 0-25m/min | 0-25m/min |
Motor Power | 1.6kw | 3.5kw | 5kw | 8kw | 10kw | 15kw |
Battery Capacity | 180Ah | 250Ah | 330Ah | 400Ah | 440Ah | 600Ah |
Battery Volatge | 48v | 48v | 48v | 72v | 72v | 72v |
Max Wheel Load | 42.6Kn | 110.4Kn | 174Kn | 278.4Kn | 343.8Kn | 265.2Kn |
Reference weight | 4.2t | 6.8t | 8t | 12.8t | 14.6t | 26.8t |
Recommend Rail | P24 | P38 | P43 | P50 | QU100 | QU100 |
Application
