40T Battery Powered Industrial Transfer Car For Heavy Material Transportation
40T Battery Powered Industrial Transfer Car For Heavy Material Transportation
Description
This series of 40T Battery Powered Industrial Trackless Trolleys for Heavy Material Transportation can be towed adopt box girder structure, which has the advantages of strong bearing capacity, no distortion, stable start, large starting moment, small impact on reducer, low voltage, long service life, unlimited running distance, and low requirement for track laying. Compared with KPJ, KPD, KPC and KPT series trackless factory flat transfer carts,40T Battery Powered Industrial Trackless Trolleys for Heavy Material Transportation can has more safety and motor flexibility. 40T Battery Powered Industrial Trackless Trolleys for Heavy Material Transportation is suitable for the occasions of low frequency and medium and long distance transportation.
Functions of 40t Battery powered transfer Trackless flat cart:
- Payload from 1 ton to 100 tons;
- With lifting holes, convenient to shipment;
- Anti-explosion,Anti-high temperature;
- Fixed speed or variable speed capabilities;
- On board charging is available if battery drives;
- Strong bearing capacity
- 360 degree rotate
- No limitance of running distance and running routine
- Battery powered,maintance-free supply mode
Product parameters
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t | |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 | |
| Impacted rated load(t) | 7.5 | 30 | 45 | 60 | 75 | |
| Structure of Frame | Steel plates welded, beam | |||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 | |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 | |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 | |
| Ground requirement | Cement floor or Steel plate ground | |||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | |
| Table size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 | |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 | |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 | |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 | |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 | |
| Turning type | Turning while driving with no stop | |||||
| Control method for turning | Control button | |||||
| Turning structure | Mechanical | |||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 | |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) | |
| Wheel material | ZG55+hydropurture | |||||
| Running speed (m/min) | 0-15 | 0-12 | ||||
| Brake principle | Electric magnetic brake | |||||
| Ground balance | Mechanical automatic adjustment | |||||
| Operation method | With wire or no wire | |||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces | |
| Battery maintainance | Free of maintainance | |||||
| Charger's installation | Installed on cart | Split-type | ||||
| Cart color | Yellow and warning sign | |||||
| Charger's function | Automatic stop for obstacles | |||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | |||||
| Warning equipment | Sound and light | |||||
| Other functions | Turning light, night light and power display | |||||

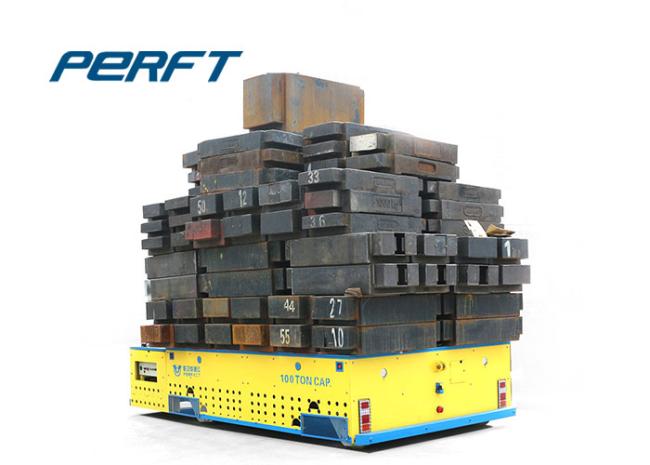

Application
![40T Battery Powered Industrial Trackless Trolleys for Heavy Material Transportation]()
After-sales
- Our commitment: The load bearing safety factor of the trackless car is no less than 120%.
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
- 16 hours engineering service and 24 hours internet service for our customers.
- During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
