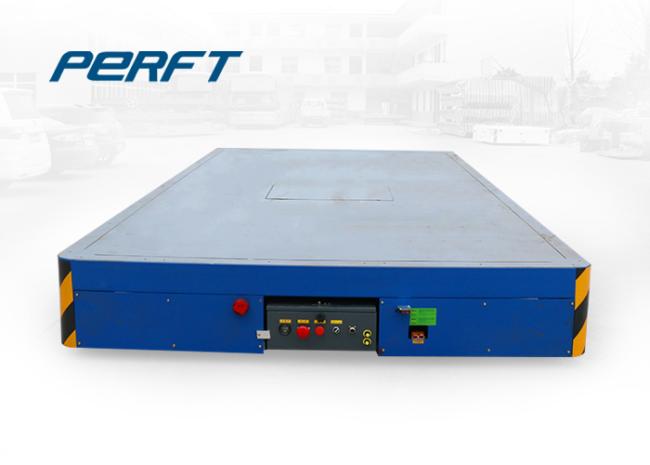

10 T Material Handling Carts Trackless Transfer Cart On Cement Floor Blue Color
10t Trackless Transfer Cart Material Transfer Cart On Cement Floor
Description
The battery powered 10t Trackless Transfer Cart Material Transfer Cart On Cement Floor have been conceived and built to realize their utmost working flexibility.Because they have no predefined path and can steer in any direction and move on any kind of floor. And these transfer car are very useful to bring the heavy loads where overhead cranes cannot arrive.
Advantages
1. High level automation(self propelled/steerable)
2. The largest capacity can reach to 100t
3. Safe parts are installed in the transfer cart(warning light, e-stop, buffer...)
4. Robust sturdy cart frame
5. AC/DC electric engine , diesel engine or pneumatic engine
6. Excellent gear reducer and motor with high quality, assemblied together perfectly
7. Remote control&hand pendant control make the opration more convenient.
8. The speed can be adjusted
9. Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using lifetime
11. Low noise and do not pollute the environment
Product Parameters
|
Model
|
BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-63T | BWP-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
Componences
Application
This series' flat carts can be used in the ferry condition and flammable, explosive environment,high-temperature condition and so on.The transfer car is suitable for various industries, steel mill, transfer steel products such as steel structure,
steel pipe, steel billets, steel ladle and coil, etcfrom one location to another; Paper roll plant: transfer paper coil Painting shops: transfer workpiece into the
painting room Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.
