5 Ton Car Plant Trailer Transfer Carriage On Rails In Factory Workshop
Price:
USD 2000~7100 set
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
Heavy Duty Plant Trailer Transfer Carriage on Rails in Factory Workshop
Product Description

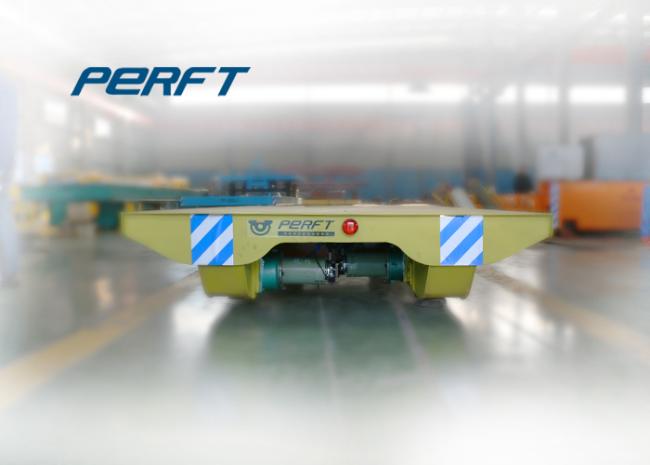

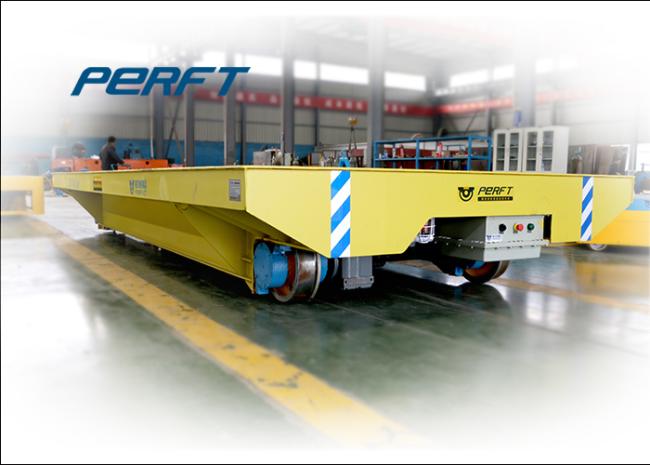

Heavy Duty Plant Trailer Transfer Carriage on Rails in Factory Workshop
5T 10T 20T industry material transfer motorized electric rail car, it is a motorized electric rail car powered by towing cable which is laid on the ground. The cable line is placed between the two rails or oneside. The operation system is low voltage 36V power. It has widely applied in the industry transportation field all over the world. Our motorized electric rail car is available in a number of configurations specifically designed to suit the needs of our customers.
Advantages
- The hydraulic lifting device can be equipped as per your requirement.
- As per the transported cargoes, the V frame, U frame, rubber pad, wooden pad, weighing device...can be equipped.
- As per the working environment, the anti-high temperature, anti-explosion, anti-rust, anti-skid measure can be adopted properly.
Parameters
| Model | BXC-2T | BXC-5T | BXC-10T | BXC-20T | BXC-30T | BXC-50T | BXC-100T | BXC-150T | |
| Rated load (T) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 | |
| Table size | length(L) | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 450 | 500 | 550 | 600 | 650 | 850 | 1200 | |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 | |
| Motor Power (Kw) | 0.8 | 1.5 | 1.5 | 2.5 | 4 | 5.5 | 11 | 15 | |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 | |
| Reference Weight (t) | 2.5 | 3.5 | 4 | 5.6 | 6.5 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | QU100 |
QU100
|
|
