Workshop Cast Iron Battery Powered 20m/Min Die Transfer Cart
We are specialized in designing and manufacturing of heavy duty Material Transfer Cart:
Transfer Cart: Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Rail Cart: Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation: Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Special Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.
Incidental Tooling
v frame, Roller support , Roller , Rubber plate , Aluminum pattern plate , Railing , Refractories , Damped Buffer , Operating table , Wodden table
Application
This kind of electric handling bogie usually be used as one automated transport vehicle for factory transportation to carry various heavy stuff and workpiece. As customers' working environment these transfer carts equipment can be used in high-temperature, anti-explosion or other sever condition with strong bearing capacity. These material handling equipment are more suitable for that high using frequency and long running distance. Normally, the hydraulic lifting device and PLC control system could be added on the motorized handling transfer carts to meet special using condition.
Parameter
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter (mm) | 270 | 350 | 500 | 600 | 600 | |
| Running Speed (m/min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Company details
Henan Perfect Handling Equipment Co., Ltd is one well known manufacturer of factory heavy material electric handling equipment for 15 years, which are more and more popular in the international market. We got the CE, ISO, SGS certification, as well as 8 patents for our products. Pursuing the innovation and becoming the leader of heavy industry has been our mission since the day being established.

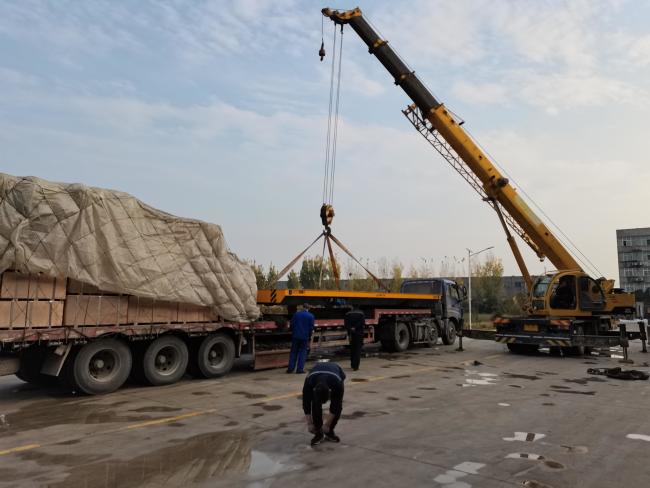

Packing and Shipping
