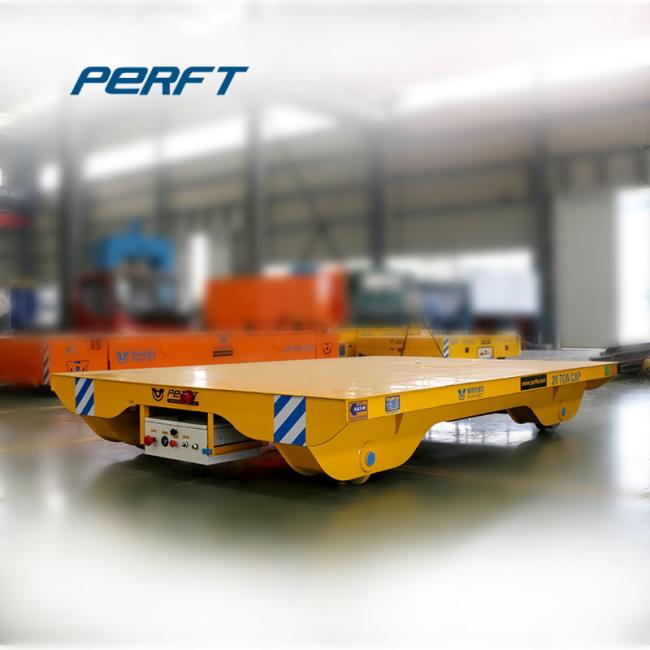

4 Rubber Wheels Automatic Busbar Powered Rail Transfer Cart 20m/Min
4 Rubber wheels Automatic Busbar Powered Rail transfer Trailer
product presentation
The BHX series transfer car is powered by the busbar. The alterative current is suppiled consistently to the pulling motor by slide knife taken from sliding contact line through electric contrql system , which makes the car start ,stop, move forward and relize other functions.The sale sliding contact line can be installed in the middle of the tracks or by the outside of the tracks or in the trench or under the roof of the plant .Positing fixture ,lifture, lifting platform, clamping device and other auxiliary device are optional to meet different demands on various occasions. The BHX series is suitable in inflammable environment and in high requency.
Production support details
1.Load capacity,table size and rail gauge can be customized.
2.Options:slid line(slid line with seamless slid line)
3.Automatic stop when detacting obstacle or person ,limit switches
4. Operation way(hand held control pendant, remote radio control or operation platform with the cart.
5.Electrical parts(imported or made in China).
6.Slide line installation(in the trench on the ground, on the wall and on the ceiling)
7.Variable speed device
8.Can be desiged to meet special working environment such as high temprature.
| Model | BHX-2t | BHX-20t | BHX-50t | BHX-100t | BHX-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 25 | 20 | 20 | 20 | 18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.3 | 5.5 | 7.6 | 13.9 | 26 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Packing and Transportation
Why choose us
Henan Perfect Handling Equipment Co., Ltd is a professional & international manufacturing factory specialized in researching, developing, producing and selling material handling equipment.Based on modern plant and advanced production equipment, we can produce all kinds of handling equipment from 1-1300 tons.Our company specialized 16 years, getting 8 national patents, so we have the best quality and the lower price.
