Motorized Electric Rail Powered 20m/Min Material Moving Carts
Price:
USD 2000~7500set
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
low pressure track electric transfer vehicle
Product Description

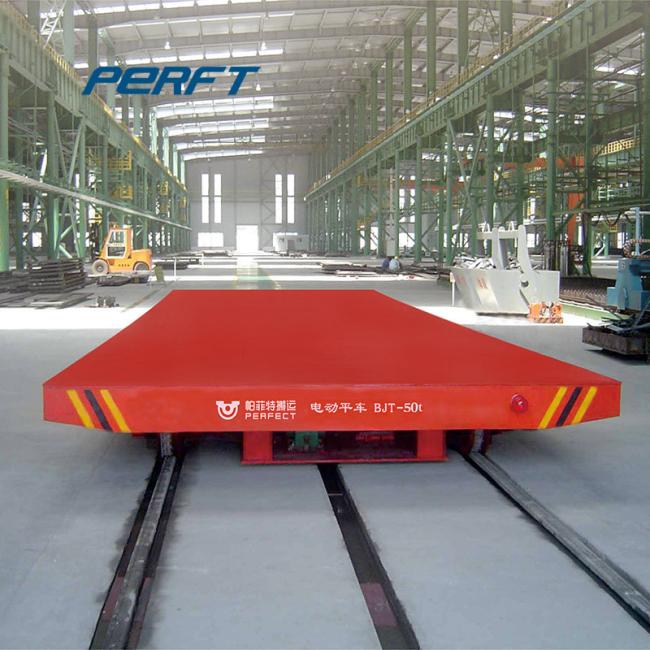

Good Quality Motorized Electric Rail powered Transfer Cart
What is Motorized Electric Rail powered Transfer Cart
The series car power source 380V-690V alternating -current is transformed into 36v alternating current and connecting respectively with two rails.The current collectors mounted on trolley which get the 36v alternating-current power from rails and transmit it into electrical box .The control system controls the motor to make the car start ,stop , move forward , move backward, adjust speed.
Series car advantages
1.The series car can run on S shape or Arc shape rails.
2.It is safe and flexible.
3.The series transfer car is suitable for heavy duty load , high using frequency and meet full automation demand.
Technical Parameters
| Model | BDGZ-2t | BDGZ-16t | BDGZ-30t | BDGZ-50t | BDGZ-63t | |
| Rated Load(t) | 2 | 16 | 30 | 50 | 63 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 4500 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2200 | 2500 | 2500 | |
| Heigth(H) | 450 | 500 | 600 | 650 | 750 | |
| Wheel Base(mm) | 1200 | 2800 | 3200 | 4200 | 4300 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter(mm) | 270 | 350 | 400 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 2 | 3.5 | 5 | 6.3 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 10 | 20 | |
| Transformer Quanity | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 70 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 64.5 | 110.4 | 174 | 221.4 | |
| Reference Weight(t) | 2.8 | 5.5 | 6.8 | 8 | 10.8 | |
| Recommended Rail Model | P15 | P24 | P38 | QU43 | QU50 | |
Customization Support
1.Load capacity, table size and rail gauge can be customized
2.Options:Remote radio control (imported or made in China)
3.Automatic stop when detecting obstacle or person, limit switches.
4.Automatic cutting off power on rail.
5.motor(DC motor with brush and DC motor brushless)
6.Electrical parts(imported or made in China)
