Customization Remote Control Steerable Transfer Cart Low Voltage
Price:
USD 2000~7500 set
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
electric flatbed cart
Product Description
International manufacturing company make Customization Remote control Low Voltage Rail cart
Company details
Henan Perfect Handling Equipment Co., Ltd is a collection of research and development, design, manufacturing as one of professional international manufacturing company of low voltage track powered transfer cars . Our company has been founded for 13 years and has become enterprise in the motorized Motorized Turntable business.
This BDG low voltage track powered transfer cars is powered by the rails.The rails need to be insulated inerection.When the running distance is longer than 70m , the transferormer needs to be increased to raise the voltage.
This BDG low voltage track powered transfer cars is powered by the rails.The rails need to be insulated inerection.When the running distance is longer than 70m , the transferormer needs to be increased to raise the voltage.
Why choose low voltage rail powered transfer cart
1.The series trolley has these featured such as safety.
2.The series trolley is flexibility.
3.The series trolley can high using frequency.
4.The series trolley has long using time.
5.The series trolley has long service time and life .
6.No limitation of running distance .

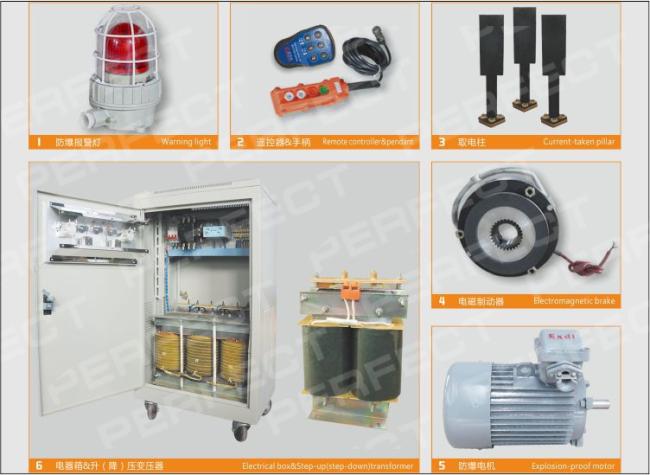

Components Of low voltage rail powered transfer cars
Technical Parameters Of low voltage rail powered transfer cars
| Model |
BDGZ -2t |
BDGZ -20t |
BDGZ-50t | BDGZ-100t | BDGZ-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 30 | 30 | |
| Transformer Quanity | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 50 | 50 | 50 | |
|
Max Wheel Load(KN) |
14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
|
Recommended Rail Model |
P15 | P24 | P43 | QU100 | QU100 | |
