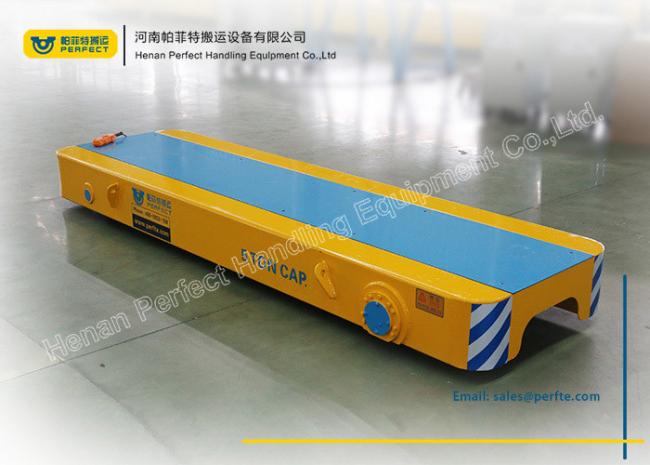

Workshop Remote Control Automatic Q235 Rail Transfer Cart
Workshop use Remote control Automatic Battery powered Heavy load cart

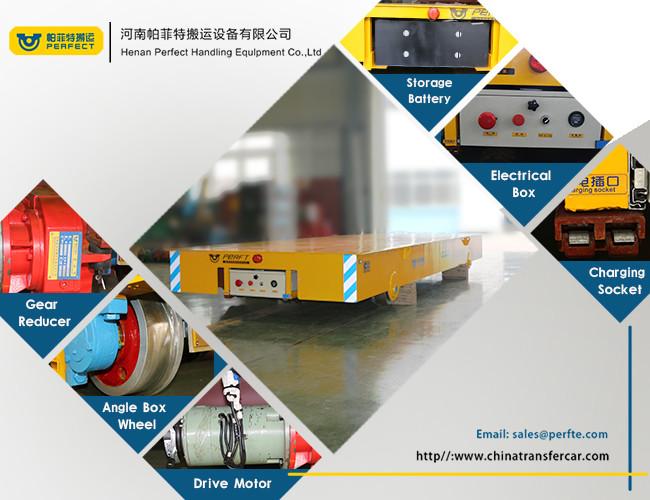

Machinery parts
1.DC controller
2.Explosion-proof DC motor
3.Angle box wheels
4.Lead acid battery or Maintenance- free battery.
5.F-series reducer
6.Charger on board
This Battery Powered Transfer Cart is usually used at ship yard, plant and factory, certain production line. The Battery Powered Transfer Cart could get power from the battery. The battery is installed inside the cart. The Battery Powered Transfer Cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and/or products through manufacturing facilities. Battery Powered Transfer Cart construction is based on our world renowned die Battery Powered Transfer Carts and provides controlled movement of heavy and oversized loads such as dies, coils and work in progress. Our Battery Powered Transfer Cart is available in a number of configurations specifically designed to suit the needs of our customers.
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
