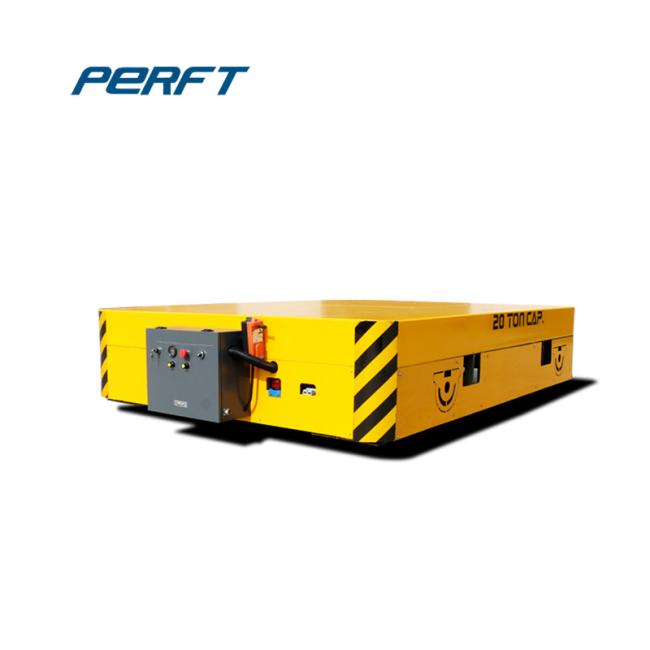

30t Heavy Load Trackless Material Transfer Cart
30T Heavy Load Trackless Battery Powered Electric Material handing cart
The BWP series cart is battery,and no limitation of the running distance and running route.The PLC system makes the 30T Heavy Load Trackless Battery Powered Electric Material handing cart start,stop,move background,turn around and realize other functions.Also, the hydraulic lifting device,V-shape,U-shape can be added of the 30T Heavy Load Trackless Battery Powered Electric Material handing cart if necessary.
Why choose 30T Heavy Load Trackless Battery Powered Electric Material handing cart
1.Needn’t run via the rails, which gets rid of relying for the rails.
2.No damage to the cement ground,because of the rubber wheel Heavy Duty Trackless Plant Trailer.
3.Battery powered, and no distance route limitation.
4.Can turn to 360 degree and run freely of the cemment floor
5.The battery Battery Capacity(Ah) and Battery Voltage(v) is 330,48 respectively.
6.The Turnning Radius(mm) is 2501-5200.
7.The die and molds can be added of the Trackless plant trailer

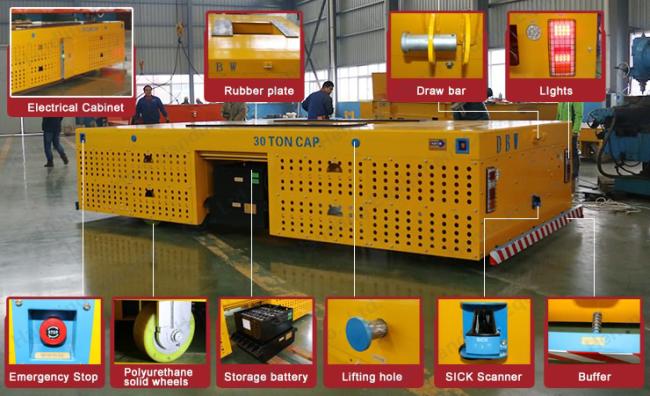

Details
Technical parameter table
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Wheel Base(mm) | 1500 | 1500 | 1500 | 1700 | 1700 | 1800 | 1800 |
| Turnning Radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 |
| Axles Distance(mm) | 2500 | 3100 | 3400 | 3900 | 4300 | 4800 | 5200 |
| Motor Power(Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 |
| Running Speed(m/min) | 0-15 | 0-15 | 0-15 | 0-15 | 0-15 | 0-12 | 0-12 |
| Cart Weight(t) | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 |
| Impacted Rated Load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 180 | 250 | 300 | 330 |
| Battery Voltage(v) | 36 | 48 | 48 | 48 | 48 | 48 | 48 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 44 | 4 | 4 |
| Ground Requirement | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor | Cement Floor |
