Battery Powered Electric Wireless Remote Heavy Load Transfer Cart
Battery powered Factory use Heavy load Electric cart with Wireless Remote
Descraptions
The Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane is powered by battery and the battery is installed inside the Rail Transfer Cart.Because there is no wires,so the running distance is not limited.The Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane can be used to L-form track or S-form track or curved track,and inflammable, explosive and ferry environment.The electric flat transfer cart can be added V shape and U shape device for coil and aluminum material transportation.The Battery Powered Electric Flat Rail Transfer Cart with Wireless Remote and Hand Combined crane running on the rail,so the Ground Clearance(mm) required 50.

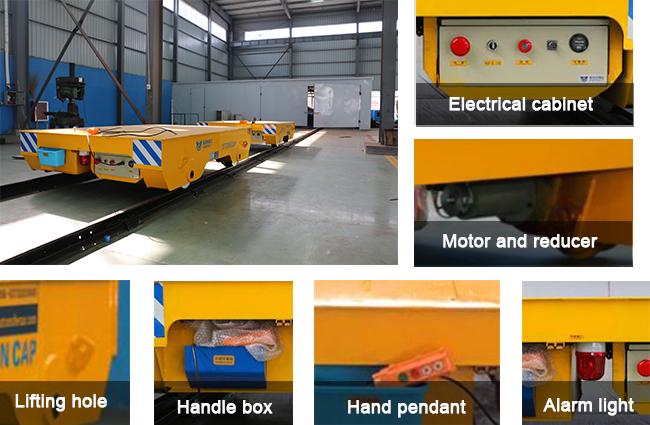

Componence
Product parameters
| Model | BXC2t | BXC20t | BXC50t | BXC100t | BXC150t | ||
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | ||
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 | |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | ||
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | ||
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | ||
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | ||
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | ||
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | ||
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | ||
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | ||
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | ||
| Running time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | ||
| Running Distance for Once Charge(KM) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | ||
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | ||
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | ||
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | ||
| Battery Voltage(v) | 24 | 48 | 48 | 72 | 72 | ||
| Battery Capacity(Ah) | 180 | 180 | 330 | 440 | 600 | ||
