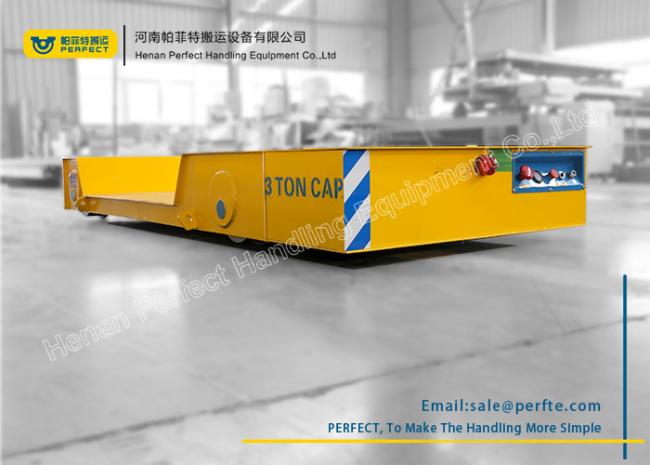

Customization Electric Coil Steel 1-100t Motorized Transfer Cart
1-100t Customization High Quality Elctric Coil Steel Motorized Transfer Cart
Appliciation:
The transfer machine is designed for transporting cargoes or equipment from one bay to another in industry. It can be used indoor or outdoor. Such as metallurgy, manufacture,oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coil industry, paper mills, metal working, warehouse, building construction and so on. Its load capacity can up to 300Ton. We will supply you a suitable scheme according your specific appliciation.
Our Brand VS Other Brand
Process Technology
First step, we choose high quality steel plate send to CNC cutting workshop for cuttingAfter that, our workers put the cut steel plate together according to the design drawing and weld them together, Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress. Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. Assemble the structure parts after spraying primer with wheels, motors and gear box, etc. Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish. The last step is debugging, After the inspection, the cart will be transported to storage area
Parameter Table of Coil Steel Pallet Transfer Cart
| Model | BXC-2t | BXC -10t | BXC -20t | BXC-50t | BXC -100t | |
| Rated Load(t) | 2 | 10 | 20 | 50 | 100 | |
| Table Size (mm) | Length(L) | 2000 | 3600 | 4000 | 5500 | 6500 |
| Width(W) | 1500 | 2000 | 2200 | 2500 | 2800 | |
| Height(H) | 450 | 500 | 550 | 650 | 900 | |
| Wheel Base(mm) | 1200 | 2600 | 2800 | 4200 | 4900 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 2000 | |
| Wheel Diameter(mm) | 270 | 300 | 350 | 500 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 75 | |
| Running Speed(min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 1.6 | 2.2 | 5 | 10 | |
| Max Wheel Load(KN) | 14.4 | 42.6 | 77.7 | 174 | 343.8 | |
| Reference Weight(t) | 2.8 | 4.2 | 5.9 | 8 | 14.6 | |
| Recommended Rail Model | P15 | P18 | P24 | P43 | QU100 | |
Why choose this serise cart
1. It causes low noise level and give workers a good working environment.
2. All of our products are easy for operation.
3. It could be operated in the harsh environment.
4. It can realize full automation operation.
5. High temperature and explosion proof;
6. With simple structure and cost effective;
7. Running distance is unlimited.
FAQ
1. Q: How to operate the electric transport cart?
A: It’s equipped with a remote controller that is used by the operator to control the transfer car movement .
2. Q: How do you guarantee the quality of the products?
A: The cart will be tested before delivery,also we got the CE SGS SASO certificates.Don’t worry,We supply after-sale service worldwide.
3. Q: What is the leading time, delivery term, and payment term?
A: Usually our leading time is 45 days.About the delivery term, we accept , FOB, CIF. About the payment, we accept T/T or L/C, etc.
4. Q: Can we choose the power supply for battery powered flat cart?
A: Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.
