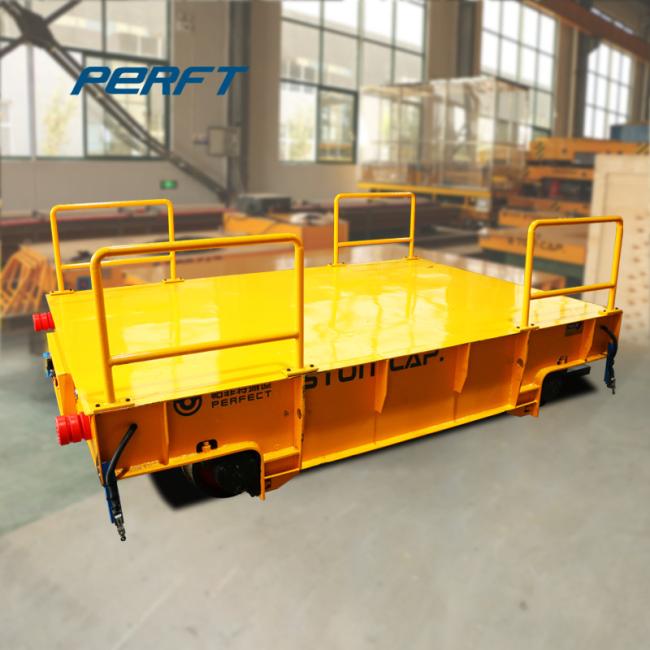

Electric Steel Wheel Ladle Transfer Car With Battery Power
Electric Ladle Steel Wheel Transfer Wagon Rail With Elecric battery power
Working principle of Rail Transport Trolley
This kind of rail transport trolley is battery powered. The batteriey is installed in the trolley. The battery supply electricity to the DC motor through the electrical control system to make the transport trolley start, stop, go forward and backward and realize other functions.
Application of Rail Transport Trolley
This kind of rail transport trolley is suitable to be used in the long running distance transportation and low using frequency. For horizontal load transfers of a wide range of material, we have the heavy duty, high quality battery rail transport trolley solutions you need. They are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. Battery transport trolleys can even be used as a stable yet moveable machine base.
Parameter of Rail Transport Trolley
|
Model |
BXC-2t |
BXC-20t |
BXC-50t |
BXC-100t |
BXC-150t |
|
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Table Size (mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Height(H) |
450 |
550 |
650 |
900 |
1200 |
|
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
200 |
2000 |
|
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power(kw) |
1 |
2.2 |
5 |
10 |
15 |
|
|
Battery Capacity |
180 |
180 |
330 |
440 |
600 |
|
|
Battery Voltage |
24 |
48 |
48 |
72 |
72 |
|
|
Running Time When Full Load |
4.32 |
4 |
3.3 |
3.2 |
2.9 |
|
|
Running Distance for One Charge(Km) |
6.5 |
4.8 |
4 |
3.8 |
3.2 |
|
|
Max Wheel Load(KN) |
14.4 |
77.7 |
174 |
343.8 |
265.2 |
|
|
Reference Weight(t) |
2.8 |
5.9 |
8 |
14.6 |
26.8 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|
