High Temperature Iron Ladle Transfer Cart On Rail Industrial Battery Powered Heavy Duty
Introduction

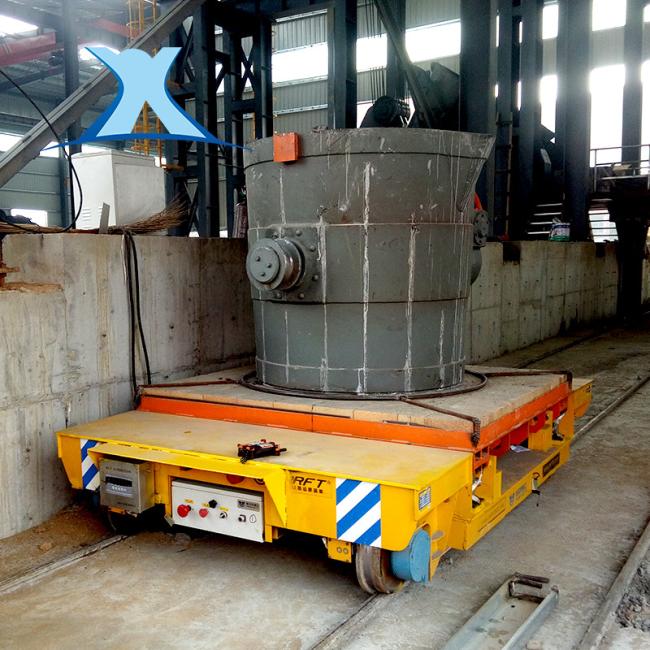

With the functions of steady traveling, stepless speed regulation, the Molten Steel Ladle Transfer Car is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc. Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the Molten Steel Ladle Transfer Car should be designed with heat exposure proof device, especially to the battery, motor, reducer and electric appliance.
It can avoid the cart from damaging and shortening using time. During the cart working, it must be steady travel, steady start and slowly stop. In order to avoid the cart broken during working, there equipped two sets driving system, if the main driving system is broken, the spare driving system can be start at the same time.
yConveyer Railway Conveyer
ailway Conveyer Railway Conveyer Railway Conveyer
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
