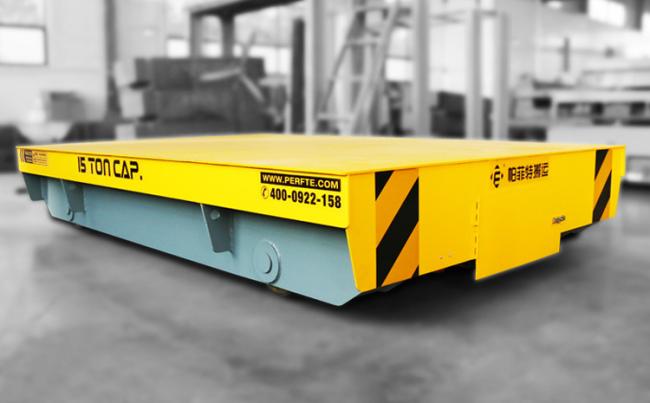

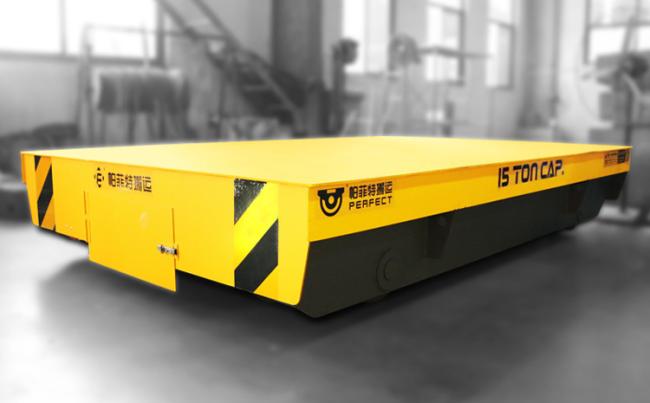

Metallurgy Factory Track Heavy Duty Transfer Cart Handling Van With Remote Control
Introduction about transfer cart
The carts that run on the shop floor level. Transfer carts come in many sizes, styles and capacities designed to suit your operations specific needs. They are modular in construction and allow movement changes at ground level in all types of industries and applications. The transfer carts on rails or straight shifts can either be powered by batteries or cable reels. Whereas the directional also named free movement transfer carts are bettery available as battery powered.
We provide various of transfer cart, transfer trolley, railway transfer cart, car turntable, coil cart, die car, ladle transfer car, heavy duty transpotor, scissor lifting transfer car and so on. We supply OEM service for you. We have rich experience in manufacturing transfer cart. We dedicate ourselves to manufacture and supply of transfer trolley with nice service. We are looking forward to your E-mail and establishing cooperative relationship with you!
| Model | BDGZ-2t | BDGZ-20t | BDGZ-50t | BDGZ-100t | BDGZ-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 30 | 30 | |
| Transformer Quanity | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
For horizontal load transfers of a wide range of material, we have the heavy duty, high quality handling machine solutions you need. Motorized transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production. They can even be used as a stable yet moveable machine base. With four different styles and standard capacities up to 60 tons, we have the solution you need and each style can be designed for your specific application.
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
