Motorized Electric Flat Transfer Cart Automatic Trackless Easy To Operate
Price:
USD 3000~8200 set
MOQ:
1 set
Delivery Time:
20 work days after received balance payment
Brand:
automatic trackless transfer car
Product Description

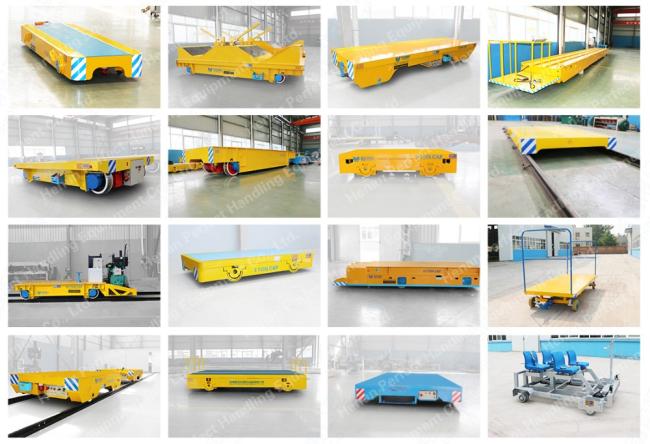

Easy to operate automatic trackless Motorized Electric Flat Transfer Cart
Introductions
We have designed transfer cars for all kind of industries. Our versatility to manufacture this vehicles is proven by our experience and adaptations. These transfer cars can be made according to our clients' needs and with clear commitment to meet them.
Carts are mounted on steel rail for shuttling along a fixed path. They can be DC battery powered or AC powered. Typically used for moving materials such as steel tubes, tanks of liquids, steel coils, steel beams, machine parts from one location to another. Standard sizes from 4 x 4 to 6 x 8. Larger cart capacities and sizes are available for specific applications.
Carts are mounted on steel rail for shuttling along a fixed path. They can be DC battery powered or AC powered. Typically used for moving materials such as steel tubes, tanks of liquids, steel coils, steel beams, machine parts from one location to another. Standard sizes from 4 x 4 to 6 x 8. Larger cart capacities and sizes are available for specific applications.
Parameter
| Model | BWP-5t | BWP-20t | BWP-30t | BWP-40t | BWP-50t | |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 | |
| Impacted rated load(t) | 7.5 | 30 | 45 | 60 | 75 | |
| Structure of Frame | Steel plates welded, beam | |||||
| thickness of the steel plate | 8 | 14 | 14 | 16 | 16 | |
| Cart weight(t) | 4.3 | 7.9 | 8.8 | 10 | 10.5 | |
| Max. wheel load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 | |
| Ground requirement | Cement floor or Steel plate ground | |||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | |
| Table size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 | |
| Height of the whole cart (mm) | 450 | 600 | 650 | 700 | 700 | |
| Wheel base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 | |
| Axles distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 | |
| Turning radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 | |
| Turning type | Turning while driving with no stop | |||||
| Control method for turning | Control button | |||||
| Turning structure | Mechanical | |||||
| Motor power (KW) | 3.5 | 7 | 10 | 12 | 15 | |
| Wheel diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) | |
| Wheel material | ZG55+hydropurture | |||||
| Running speed (m/min) | 0-15 | 0-12 | ||||
| Brake principle | Electric magnetic brake | |||||
| Ground balance | Mechanical automatic adjustment | |||||
| Operation method | With wire or no wire | |||||
| Battery model | D-250 24pieces | D-440 24pieces | D-250 36pieces | D-330 36pieces | D-440 36pieces | |
| Battery maintainance | Free of maintainance | |||||
| Charger's installation | Installed on cart | Split-type | ||||
| Cart color | Yellow and warning sign | |||||
| Charger's function | Automatic stop for obstacles | |||||
| Radar control | 3-0.3 m, Automatic stop for obstacles | |||||
| Warning equipment | Sound and light | |||||
| Other functions | Turning light, night light and power display | |||||
Application
The Electric Flat Transfer Cart of PERFECT allow movement charges at ground level in all types of industries and applications, such as assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
