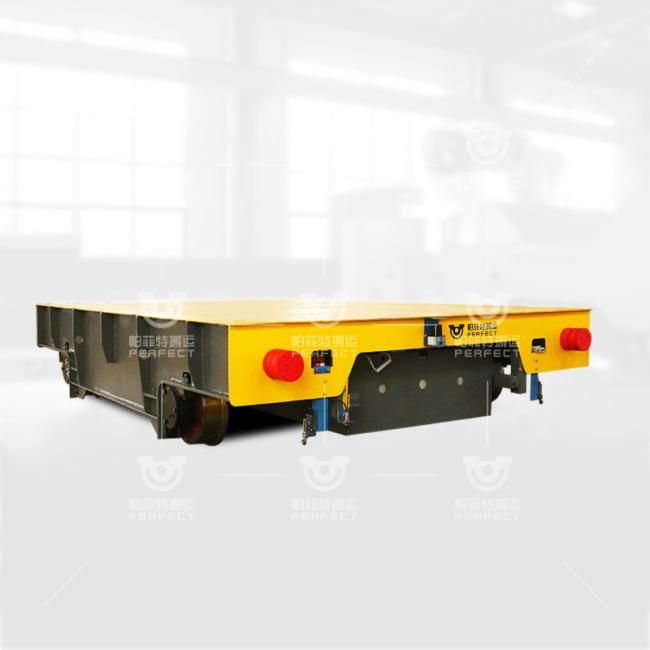

Flat Quad Electric Ferry Transfer Cart Battery Power Heavy Load For Factories
Battery Power Flat Quad Heavy Load Electric Ferry Transfer Cart for Factories
Introductions
The Crossing Rails Ferry Transport Cart is made up of two parts. The upper car is used for transporting cargo. The upper can can be equipped with V shape support, lifting platform. The down car is usually designed to run underground. The rail is mounted underneath the car and used for connecting with other rails in workshops which makes the upper car be able to run on parallel rails. The Crossing Rails Ferry Transport Cart can realize cargo transfer among crossing rails. It's more convenient and could be used separately compared with rotating platform.
| Model | BXC-5t | BXC-20t | BXC-30t | BXC-40t | BXC-50t |
| Rated Load(t) | 5 | 20 | 30 | 40 | 50 |
| Max. Wheel Load (t) | 2.8 | 5.6 | 7.7 | 10 | 12 |
| Ground Requirement | Cement floor or Steel plate ground | ||||
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 |
| Table Size (mm) | 3000 X 2000 | 4500 X 2200 | 5000 X 2200 | 5500 X 2300 | 6000 X 2300 |
| Height (mm) | 450 | 600 | 650 | 700 | 700 |
| Wheel Base (mm) | 1500 | 1700 | 1700 | 1800 | 1800 |
| Axles Distance (mm) | 2500 | 3900 | 4300 | 4800 | 5200 |
| Turning Radius (mm) | 2501 | 3901 | 4301 | 4801 | 5201 |
| Turning Structure | Mechanical | ||||
| Motor Power (KW) | 3.5 | 7 | 10 | 12 | 15 |
| Wheel Diameter (mm) | 300 (4) | 400 (4) | 400 (6) | 500 (6) | 500 (6) |
| Wheel Material | ZG55+hydropurture | ||||
| Running Speed (m/min) | 0-15 | 0-12 | |||
| Brake Principle | Electric magnetic brake | ||||
| Operation Method | Raido Remote Control | ||||
| Battery Maintainance | Free of maintainance | ||||
| Charger's Installation | Installed on cart | Split-type | |||
| Cart Color | Customized | ||||
| Charger's Function | Automatically cut off the power when the battery is fully charged | ||||
| Radar Control | 3-0.3 m, Automatic stop for obstacles | ||||
| Warning Equipment | Horn and Flash Light | ||||
| Other Functions | Turning light, night light and power display | ||||
Feature of cart
---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These transfer carts are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.
