Shipyard Steel Plate Material Handling Rail Transfer Cart Remote Control 50t
Shipyard 50t Remote Control Steel Plate Material Handling Vehicles Rail Transfer cart
Product Introduction

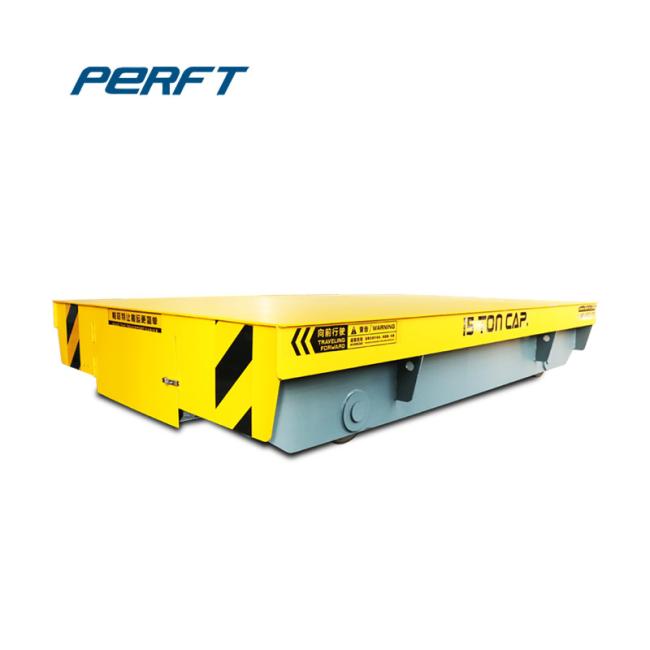

Our battery powered material handling vehicle can be used for the horizontal movement of materials, assemblies, maintenance and other items. It is powered by storage battery, which is installed on the material handling vehicle. This kind of battery powered material handling vehicle is manual guide handling machine equipped with specialized drive systems which make it possible to easily, precisely and safely move up to 300 tons. Usually it is used to accommodate the needs of a wide range of industries including steel, aluminum, automotive, heavy manufacturing, ship assembly & maintenance others.
The advantages of Transfer Cart
- Suitable for frequent use
- Not limited by tonnage
- It can be used in high temperature and explosion-proof environment.
- Not limited by time
- Low cost of track laying
- It can be used in S-shaped and arc-shaped tracks.
- Can be fitted with V-frame, roller frame, hydraulic pressure
- Box girder structure with a high bearing coefficient
- Using the handle and remote control operation, the operation is simple and reliable.
Technical Parameters
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Transportation
*For length is less than 6m, the width is less than 2.2m. Electric Rail Vehicle will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container. If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.
*If the length is less than 12m, the width is beyond 2.2m. Electric Rail Vehicle needs to be transported by flat rack (20 or 40 ft) . If the equipment is beyond above dimension, and quantity need to consider bulk cargo.
Why Choose Us?
We are professional and experience for material handling equipments design, manufacturer, selling and exporter meanwhile we also design material handling solution according to per client's demand.
Our products include rail transfer cart, trackless transfer car, battery powered transfer cart, traverse, transfer table, turn-plate, ladle transfer cart, coil handling vehicle, ferry cart for perdenticular railroads etc. Our products have passed the authentication of Quality system ISO9001, and SGS, CE certifications. All of our products accord with machinery industrial standard JB/T61 27-10.
