Steel Pallet Motorized Cable Drum Steel Coil Rail Transfer Cart
Steel Pallet Motorized Cable Drum Steel Coil Rail Transfer Cart
Product Introduction
Our coil transfer cart are used to transport steel coils and pipes for the metal industry.
This coil transfer Cars are designed to be an extremely cost-effective, safe and flexible load moving alternative. Our coil transfer carts are specially designed for coil, pipe and other round material transportation.
There are mounted V-shape and Roller on coil transfer cart to protect the coil stable, roller distance can be adjusted as per coil diameter, V-shape supporting and roller can also be removable from the cart for other cargo transport.
The coil transfer cart was developed to dramatically reduce the material handling requirements of cranes and fork trucks while providing quick, safe and smooth movement of materials and products through manufacturing facilities.
when the goods are loaded, we can make sure the cart moves safely and the goods are in a very safe condition.
Application Sites
This kind of motor trackless flat dolly has a wide usage in various branches. For example: it can be used to transport mold in die factory and handling workpiece between bays. And also it used for finished coils transfer in workshops or used as a ferry vehicle to cross the trench.

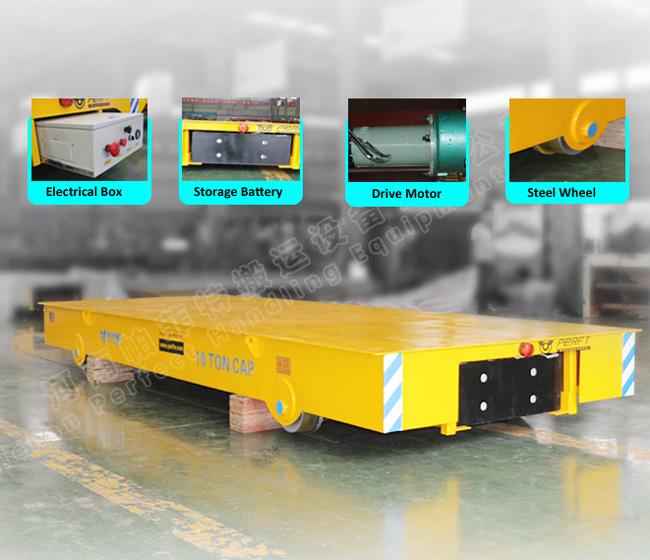

The Main Parts---Motor Trackless Flat Dolly
The key components of our motor trackless flat dolly include: electric motor and equipment, gear reducer, flat dolly wheel (fixed wheels, swivel wheels), flat dolly frame, warning device, remote-controller, electrical appliance box, maintenance storage battery and transmission system etc.
Technical Parameters
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size (mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Height(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 200 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Why Choose Us?
- Our commitment:
- The load bearing safety factor of the Handling Vehicle is no less than 120%;
- Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material;
- 16 hours engineering service and 24 hours internet service for our customers;
- During the warranty period, if our Coil transfer cart can't work normally, we can support you repair technology or replace relevant parts for you within 48 hours;
- Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company;
