19 Inch ODF Optical Fiber Distribution Frame 12 Port Core with Standard Size for CATV and FTTH Applications
Price:
10~100
MOQ:
1~10000
Delivery Time:
within 2 weeks
Brand:
New Light
Product Description

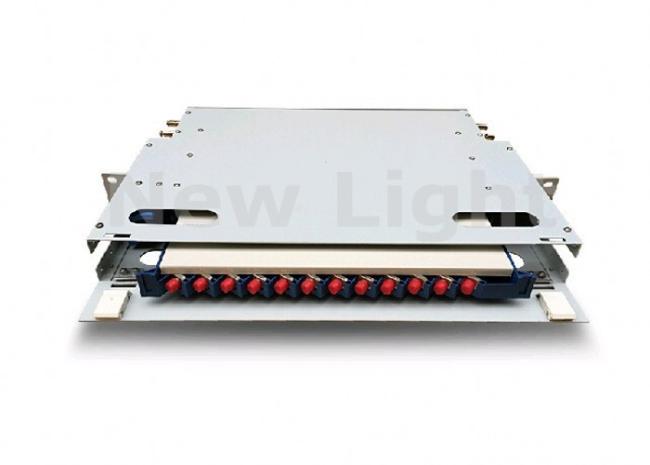

CATV 19 Inch ODF Optical Fiber Distribution Frame 12 Port Core
CATV use 19 inch 12 core ODF optical fiber distribution frame 12 port core designed for efficient fiber management and distribution.
Technical Specifications
Type: Cable installation, wall mount
Size Options: 40x38x14cm, 30x30x8.5cm, 40.5x38.2x8.5cm
Capacity: 12 SC, 12 LC
Connector Options: SC, SC/APC, LC, LC/APC, ST, FC
Size Options: 40x38x14cm, 30x30x8.5cm, 40.5x38.2x8.5cm
Capacity: 12 SC, 12 LC
Connector Options: SC, SC/APC, LC, LC/APC, ST, FC
Key Features
- Standard size, light weight and reasonable structure
- Splice tray inside changeable
- Compatible with 19'', 23'' standard distribution frames
- Suitable for ribbon and single fiber applications
- Various panel plates to fit different adapter interfaces
- Front marking on plates for easy identification and operation
- Multiple capacities available: 24C, 36C, 48C, 72C, 96C optional, with or without fiber optic pigtails and adapters
- Easy management and operation
Product Description
ODF with pigtails and adapters includes one ODF unit, adapters, and pigtails. Components are shipped separately for on-site assembly by installers. Available in configurations from 12 to 192 fibers. All ODF units are withdrawable and designed for mounting in 19" racks, equipped with splice holders and fiber guiding systems. Custom combinations available upon request.
Applications
- Telecommunications subscriber loop
- Fiber to the home (FTTH)
- LAN/WAN networks
- CATV systems
Electrical Performance Specifications
| Parameter | Specification |
|---|---|
| Environment temperature | -25~55°C |
| Atmosphere pressure | 70~106Kpa |
| Insulating resistance | >2×10⁴ MΩ/500VDC |
| Relative humidity | <85% (when temperature is below 30°C) |
| Voltage resistance strength | 15kV/DC/1min, non-puncture, no arc-over |
