Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket
Price:
Negotiable
MOQ:
1pcs
Delivery Time:
3-10 working days
Brand:
OEM
Product Description
Lemo Circular Push Pull Cable Connector 10 Pin FGG EGG 2B Size Plug And Socket
High-performance Lemo circular push-pull 10-pin FGG EGG 2B size connector system featuring reliable quick-disconnect functionality for industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Shell Style/Model | FGG: Straight plug, cable collet |
| Keying | 1 key (alpha=0, plug: male contacts, receptacle: female contacts) |
| Housing Material | Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces |
| Configuration | 2B.310 : 10 Low Voltage |
| Contact Type | Solder |
| Max. Matings | 5000 |
| Contact Diameter | 0.9 mm (0.035in) |
| Bucket Diameter | 0.8 mm (0.031in) |
| Max. Solid Conductor | 0.34 mm² (AWG 22) |
| Max. Stranded Conductor | 0.34 mm² (AWG 22) |
| R (max) | 4.8 mOhm |
| Vtest (contact-shell) | 1300 V (AC), 1840 V (DC) |
| Vtest (contact-contact) | 1450 V (AC), 2050 V (DC) |
Environmental & Performance Specifications
| Parameter | Specification |
|---|---|
| Temperature Range | -55°C / +250°C |
| Maximum Humidity | ≤95% [at 60°C /140°F] |
| Vibration Resistance | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [6 ms] |
| Salt Spray Corrosion | >1000 hours |
| Climatical Category | 50/175/21 |
| Shielding (10 MHz) | 75 dB minimum |
| Shielding (1 GHz) | 40 dB minimum |
| IP Rating | IP50 |

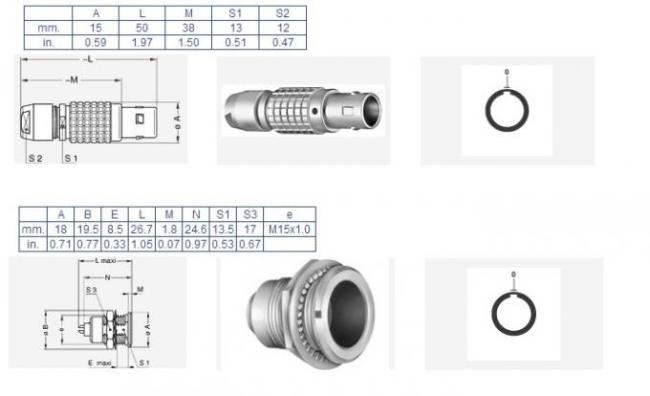

Product Dimensions & Drawings
