Customized Roll Of Woven Steel Mesh Filter For Chemical Or Food Filtration
Customized Roll Of Woven Steel Mesh Filter For Chemical Or Food Filtration
Stainless Steel Mesh Filter Description
Product: Stainless steel wire mesh
Materials: 302, 304, 304L, 316, 316L stainless steel wire
Weaving: Plain weave, twilled weave, dutch weave
Width: From 0.5m to 6m
Length: 30m per roll
Mesh Size: 7 mesh to 500mesh
Application: Being widely used in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.
Stainless Steel Mesh Filter Specification
| PLAIN WEAVE | |||
| MESH(INCH) | WIRE DIA.(mm) | APERTURE(mm) | MATERIAL(AISI) |
| 2 | 1.800 | 10.900 | 304/316 |
| 1.500 | 11.200 | 304/316 | |
| 3 | 1.500 | 6.960 | 304/316 |
| 1.200 | 7.260 | 304/316 | |
| 4 | 1.200 | 5.150 | 304/316 |
| 1.000 | 5.350 | 304/316 | |
| 5 | 1.000 | 4.080 | 304/316 |
| 0.900 | 4.180 | 304/316 | |
| 6 | 1.000 | 3.233 | 304/316 |
| 0.800 | 3.433 | 304/316 | |
| 7 | 0.800 | 2.828 | 304/316 |
| 0.700 | 2.928 | 304/316 | |
| 8 | 0.800 | 2.375 | 304/316 |
| 0.600 | 2.575 | 304/316 | |
| 10 | 0.600 | 1.940 | 304/316 |
| 0.550 | 1.990 | 304/316 | |
| 12 | 0.600 | 1.516 | 304/316 |
| 0.550 | 1.566 | 304/316 | |
| 0.500 | 1.616 | 304/316 | |
| 14 | 0.550 | 1.262 | 304/316 |
| 0.500 | 1.312 | 304/316 | |
| 0.450 | 1.362 | 304/316 | |
| 16 | 0.500 | 1.088 | 304/316 |
| 0.450 | 1.138 | 304/316 | |
| 18 | 0.500 | 0.910 | 304/316 |
| 0.450 | 0.960 | 304/316 | |
| 0.400 | 1.010 | 304/316 | |
| 20 | 0.500 | 0.770 | 304/316 |
| 0.450 | 0.820 | 304/316 | |
| 0.400 | 0.870 | 304/316 | |
| 30 | 0.350 | 0.496 | 304/316 |
| 0.300 | 0.548 | 304/316 | |
| 0.250 | 0.596 | 304/316 | |
| 35 | 0.300 | 0.425 | 304/316 |
| 0.250 | 0.475 | 304/316 | |
| 0.230 | 0.495 | 304/316 | |
| 40 | 0.250 | 0.385 | 304/316 |
| 0.200 | 0.435 | 304/316 | |
| 0.180 | 0.455 | 304/316 | |
| 50 | 0.220 | 0.288 | 304/316 |
| 0.200 | 0.308 | 304/316 | |
| 0.180 | 0.328 | 304/316 | |
| 60 | 0.190 | 0.233 | 304/316 |
| 0.180 | 0.243 | 304/316 | |
| 0.160 | 0.263 | 304/316 | |
| 70 | 0.140 | 0.223 | 304/316 |
| 0.120 | 0.243 | 304/316 | |
| 80 | 0.140 | 0.178 | 304/316 |
| 0.120 | 0.198 | 304/316 | |
| 90 | 0.110 | 0.172 | 304/316 |
| 0.100 | 0.182 | 304/316 | |
| 100 | 0.110 | 0.144 | 304/316 |
| 0.100 | 0.154 | 304/316 | |
| 120 | 0.080 | 0.132 | 304/316 |
| 150 | 0.063 | 0.106 | 304/316 |
| 165 | 0.060 | 0.094 | 304/316 |
| 180 | 0.053 | 0.088 | 304/316 |
| 200 | 0.053 | 0.074 | 304/316 |
| AVAILABLE IN WIDTH:0.60M-1.5M | |||
Stainless Steel Mesh Filter Benefits
- To filter out contaminants and improve mixing and product purity, reduce your maintenance and repair costs.
- With smooth screening surface with no sharp edges, burrs or acute angles.
- Available in different size, variants and specifications.
- Highly durable with robust structure.
- Anti-abrasive & anti-corrosive in nature.
- High quality and filtration capacity.
- Precise fitting filter elements.
- Optimum cost-performance ratio.
- Constant quality control during production.
Stainless Steel Mesh Filter Application
Extruder screen is essential in preventing contamination in the melted mass during the extrusion process. It is effect to keeps away mixing of foreign particles in finally equipped extrusion product and provide a clean and clear extrusion to use. Mainly used for filtration of plastics and rubber processing industry, chemical and pharmaceutical industry.

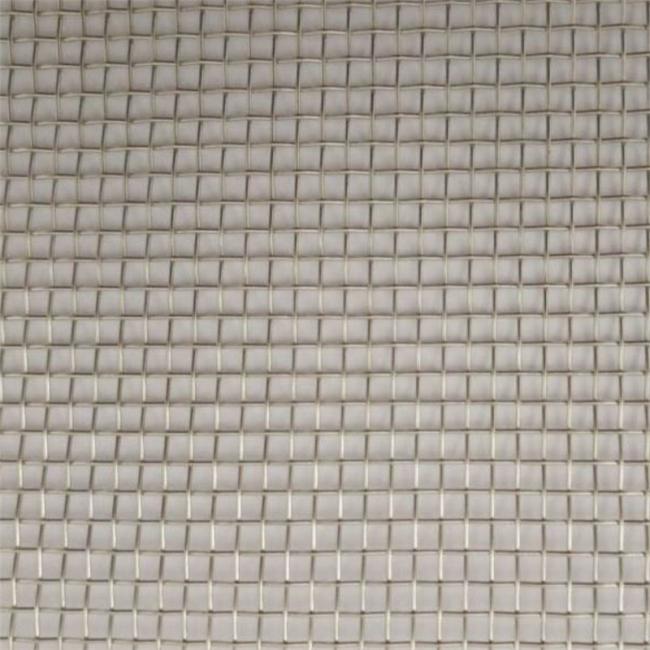

Stainless Steel Mesh Filter Details Shown

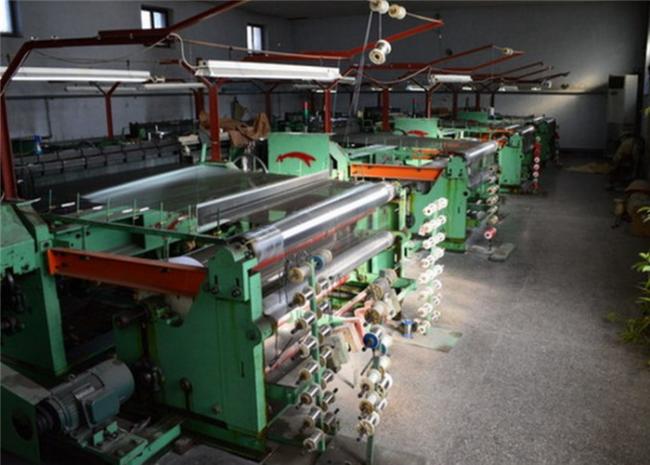

Stainless Steel Mesh Filter Making Processing
