Galvanized Metal Roller Shutter Door Roll Forming Machine For Light Garage
Galvanized Light Garage Metal Roller Shutter Slat Door Roll Forming Machine
Technical Parameters
| No | Item | Parameter | Note | |
| 1 |
Suitable
Material |
Type | Steel sheet | |
| Roller Shutter | Thickness: 0.7-1.0 mm | |||
| 2 | Product Specifications | Detail as the attached drawing | ||
| 3 | Power Requirement | Type | 380V/3PH/50HZ | |
| Main motor power(KW) | 3 | |||
| Cutting power(KW) | 3 | |||
| 4 | Forming Speed(m/min) | 15-18 | ||
| 6 | Forming Stand | 12 | Depend on actual design | |
| 7 | Forming Shaft Diameter(mm) | 65 | Depend on actual design | |
| 8 | Type of Cutting | Roll-formed and length-set cutting | ||
| 9 | Control System | Mitsubishi PLC and inverter | ||
| 10 | Run Out Table | 2mX3 | ||
| 11 | Installation Dimension(m) | 8X1.5 | Without the panel length | |
| 12 | Total Weight(T) | 8 | Depend on actual design |
|
Our service:
Best service:
from designing, processing,assembling, debugging, delivery.
2.we can send our engineer to your site and do the training for your men. you just only bear the cost for our engineer's air ticket,visa,accormadation,food and transpotaion in your country.
3.You can send your men to our factory. we will teach them how to operate the machine without training charges.
4.Actually theres another cheap and easy way to choose. Every machine leave our factory with one book of operation manual. You can read through the manaul first ,and get familiar with the machine. Then we can get a video call,and teach you on-line how to operate the machine.
5.Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support.

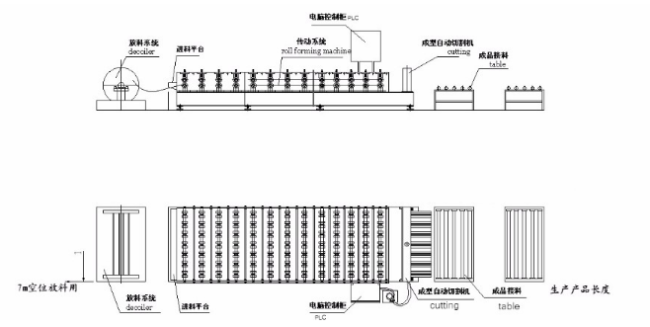

Working Flow:
Manual decoiling----feeding and guiding----roll forming----punching----cut to length----run out table
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 8 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,
replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,if the broken parts can't repair,
we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.
we have rich experience in transport.
Q:Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.
Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
Need my help now?I am always here for you
Please contact us now!

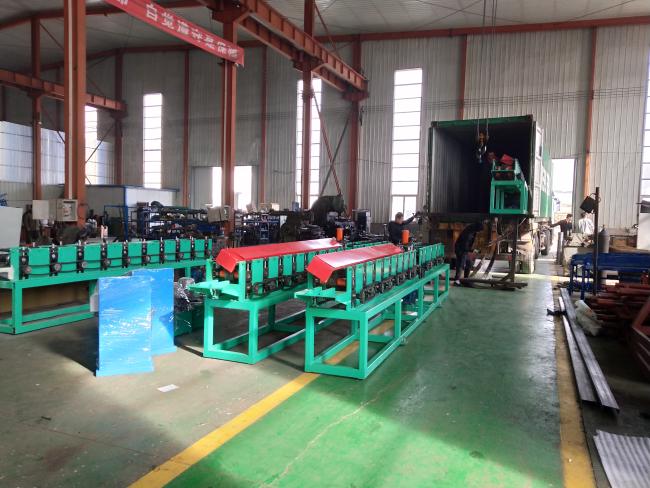

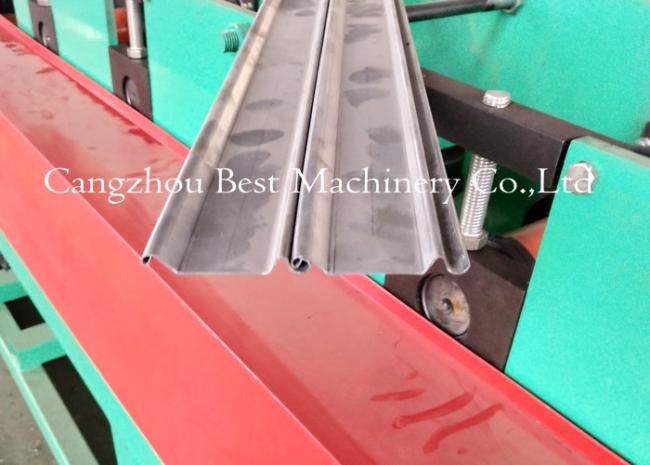

Machine photos:
Machine Loading:
