Capacity: 5000kg
Width: 600mm
Inner Diameter: 450-550mm
Outter Diameter: 1500mm
Type: Hydraulic Or Manual(Optional)
Metal Roofing Galvanized Aluminum Corrugated Steel Sheet Forming Making Machine 8-12m/min Speed
Price:
USD5500-USD25500/set
MOQ:
1 set
Delivery Time:
5-60days
Brand:
CHBEST
Product Description
Metal Roofing Galvanized Aluminum Corrugated Steel Sheet Forming Making Machine
Processing flow diagram
Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products
Technical parameters
| Model number | FX- corrugated iron roofing sheet making machine |
| Rolled material | 0.3-0.8mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates |
| Effective width | 840mm |
| Feeding width | 1000mm |
| Forming steps | 11 stations |
| Roller | 45# forged steel, hard chrome plating within 0.05mm |
| Diameter of shaft | 70mm |
| Main motor power | 3 kw |
| Pump power | 3 kw |
| Sprocket chain | 1 inch |
| Drive type | by chain |
| Cutting Blade | Cr12, heat treatment 60-62°C |
| Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
| component | 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table |
| Payment terms | cash,T/T,L/C. |
| Delivery time | 30 working days |
Decoiler 1set

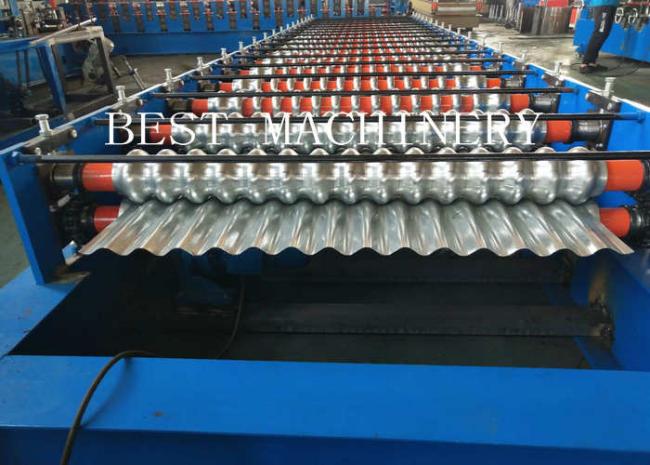

Roll Forming Machine 1set
Roller Station: 11steps
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
Frame Panel Thickness: 14mm
Power: 4kw
Shaft Material: 45# steel
Shaft: 70mm
Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60°
Frame Panel Thickness: 14mm
Power: 4kw
Shaft Material: 45# steel
Shaft: 70mm
Thickness: 0.3-0.8mm.
Control System 1set
Cut-Off Type: Hydraulic, Automatic Cut-Off
Material for Cut-Off Modular:Cr12 steel after treatment
Hardness for Heat Treatment:HRC55 – 60°
Motor for Hydraulic Stand: 3 kW
Driven: 1 inch chain
Control System 1set
Type: PLC Frequency Control System with touch screen
PLC brand: Japan Panasonic
Encoder brand: Omron
Length Error: ±2mm
Hydraulic Pump 1set
Power: 3kw
Oil Type: 46# hydraulic oil
Pump Brand: China Brand
Output Table 1set
Length: 6m
It is simple and used to load finished product
Our service:
1. we can produce the special machine,send your drawing to us,we can design for you.
2. if you buy our products,we also can help you to purchase the material,like color roll,the price is lower than you buy by yourself.
3. we provide a one year warranty and lifelong technical support, we can send our technicians to you to give you on-site training.
The training period would be for no more than one week with the customer paying for the visa, return ticket, food, accommodations and pay salary everyday.
4. engineers available to service machinery overseas.
5. if you come to visit our factory,we can book the room for you, car pick up to send.
Thanks for visiting our products, if you have interest, pls leave your message, or you can contact us, special design is available!
The real data, the most professional foreign trade team, your best trustable partner.
Our company:
Cangzhou Best Machinery Manufacturing co., LTD is specialized in the manufacture of high-end equipment cold bending forming equipment manufacturer,has a professional engineer for technical guidance.Engineers engaged in cold bending mechanical equipment design for more than 20 years,has a wealth of design concept.Can provide users with a special type of design and manufacture.At the same time to sell equipment for installation,guidance,production,commissioning one-stop service.
