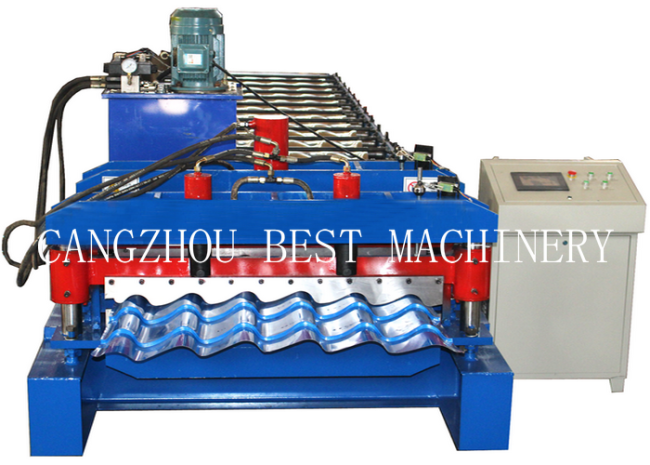

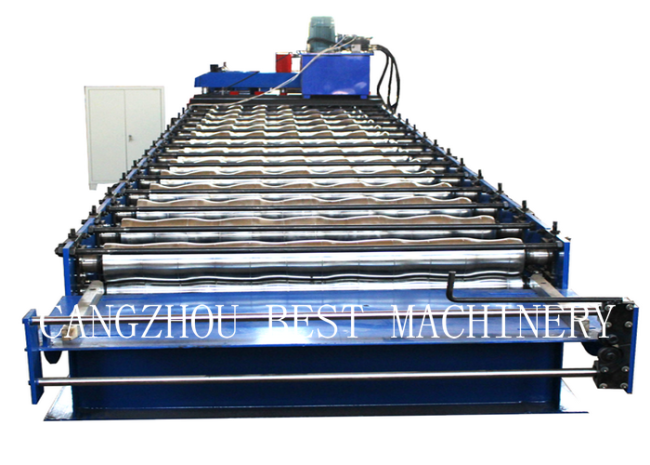

4m/min Glazed Roofing Tile Roll Forming Machine For Roof Building
4m/min Glazed Roofing Tile Roll Forming Machine For Roof Building
Working flow:
Decoiler---Feeding&Guiding---Roll Forming---Hydraulic Pressing&Cutting---Receiving Table
Machine production:
|
1. Un-coiler: 5 tons passive |
 |
|
1. Pressing and cutting way: Hydraulic cut. |
 |
|
1. Material Thickness: 0.3-0.8mm PPGI and GI 2. Material for Rollers: high grade 45# steel polished and coated with chrome HRC55-60° 3. Material for shaft: high grade 45# steel polished and coated with chrome HRC55-60° |
 |
1.Length & quantity controlled by PLC Length inaccuracy can be amended easily. 2.Control panel: Button-type switch and touch screen 3.The language in the touch screen: English and Chinese 4.Unit of length: millimeter (switched on the control panel) |
 |
|
1.Motor power: 3 kw |
 |
|
|
 |
Technology parameters
| 1 | Suitable raw material | PPGI/PPGL/GI/GL Steel Coils |
| 2 | Thickness of coil sheet | 0.3-0.8mm |
| 3 | Feeding Coil width | 1000mm/1200mm |
| 4 | Effective width | 800mm/1000mm |
| 5 | Under frame | 350H-beam |
| 6 | Diameter of Soild shaft | 70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway |
| 7 | Roller |
High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment, hard chrome coated 0.05-0.07mm |
| 8 | Thickness of middle plate | Guide pillar memorial archway |
| 9 | Forming stations | 16 |
| 10 | Drive type | By chain(1.0 inch) link bearing model 6210 |
| 11 | Power of main motor | 4kw with Cycloidal reducer, Lichao, Shanghai |
| 12 | Power of pump station | 4kw, Lichao, Shanghai |
| 13 | Forming speed | About 15-20m/min |
| 14 | Hydraulic cutting | Controlled by PLC |
| 15 | PLC | DELTA, TAIWAN / Mitsubishi, Japan |
| 16 | Material of cutting blade | Cr12Mov, quenching 58-62℃ |
| 17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm). |
| 18 | Switch | CHNT |
FAQ:
Q: How can I contact you?
A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you
Q: What is the status of After-sale Services for customers and machineries?
A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.
Q: How to visit our company?
A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Q: How many years since you have been in this field?
A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.
