Steel Plate Glazed Roof Tile Roll Forming Machine 1000mm Feeding Width
Steel Plate Glazed Roofing Sheet Roll Forming Machine 1000mm Feeding Width
Technical parameters of glazed metal tile roofing sheet roll forming machine with PLC :
(1) material: color steel sheet, galvanized sheet, aluminium sheet
(2) Thickness of the plate : 0.3-0.8mm
(3) Input width of the plate: 1000mm
(4) Effective width of the plate :828mm (
5) Productivity :8-12m/min
(6) Roller steps :9 rows
(7) Roller material: 45# steel
(8) Diameter of active shaft: 70mm
(9) Wall thickness of the main forming machine: 12mm steel plate
(10)Main forming machine body : 250mmH steel
(11) Transmission chain is1’’; 828/1035-207-28 Reducer is 5.5kw Xingxing Cycloid which works stably and no noise.
(12) Cutting hydraulic systerm :the motor power is 3kw, no noise, work stably, long life expentancy.
(13) PLC control systerm, easy to operate, high precision and work stably.
(14) Dimensions of major structure:6200mm*1400mm*1500mm

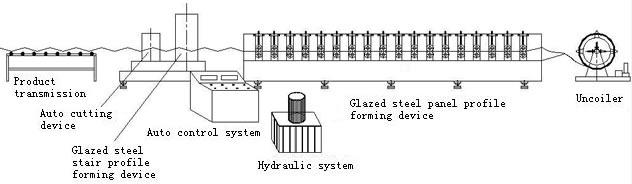

Working flow of glazed tile roofing sheet roll forming machine
Main machine parameters:
|
NO |
Main parameter |
|
|
1 |
Configurations |
manual decoiler, guiding platform, main machine of roll forming, cutting device, output table, electro-motor, hydraulic station, PLC control system |
|
2 |
Processing material |
aluminium sheet/galvanized steel sheet/color steel sheet |
|
3 |
Material thickness |
0.3-0.8mm |
|
4 |
Feeding width |
1000mm |
|
5 |
Effective width |
760mm |
|
6 |
Main motor power |
4kw |
|
7 |
Pump power |
4kw |
|
8 |
Shaft diameter |
75mm |
|
9 |
Forming steps |
13 steps |
|
10 |
Main frame |
300H steel |
|
11 |
Control systerm |
PLC computer control with inverter |
|
12 |
Power supply |
380V, 3 Phase, 60Hz |
|
13 |
0veral sized |
6500mm*1500mm*1200mm |
|
14 |
Total weight |
3.5 Tons |
|
15 |
Cutter material |
Cr12 mould steel with quenched treatment |

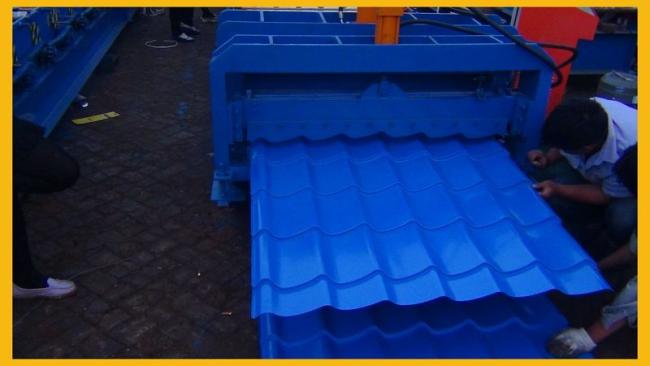

More Picture of the machines:
