Cold Steel Strip Profile C&Z Purlin Forming Machine

Price Negotiable

Price: USD35000--40000

MOQ: 1 set

Delivery Time: 30 work days

Brand: BEST

Product Description

Fully Automatic Cold Steel Strip Profile Used C Z Purlin Roll Forming machine

Product Description

Technical Parameters (depending on specific requirements of users)

Suitable steel plate	Type	Color steel plate
	Thickness	0.3-1.0mm
	Feeding width	As users needs
	Effective width	As users needs
Production speed	8-12m/min
Roller stand	18 rows
Roller Diameter	70mm
Main power	15kw
Pump power	5.5kw
Side panel of machine	14mm
Roller material	GCr15
Blade material	Cr-12, quenched, Cr-plating size 0.05mm
Control system	Delta PLC control
Main structure of the machine	300mm H-Beam

Components

No.	Item	Unit	Qty
1	Manual decoiler	set	1
2	Main roll forming machine	set	1
3	Main machine of composting	set	1
4	PLC control box	set	1
5	Supporter table	set	1

Auto Uncoiler for steel C Z U purlin cold roll forming machine

Type: Hydraulic
Capacity : 5Ton -10Ton
ID-OD: 450~508mm
Max width: 1250mm
Above parameters can be designed as your needs .
We also have manual type for free .


steel C Z U purlin cold roll forming machine Structures
Roller station: as profile design
Roller material: No.45 steel with heat treatment , chrom on surface , hardness 58-60 .
Drive : chain or gear box
Motor : 5.5KW

steel C Z U purlin cold roll forming machine Pump Station
Usage : To control machine cutter work
Power: 5.5kw
Solenoid values

Automatic punching Z or C or U shape purlin roll forming machine Control System
PLC : Delta or custom brand
Screen : Touch screen
Language: English ,Chinese
HMI : Fixed ,easy to operate

Auto Stacker of steel C Z U purlin cold roll forming machineFull Automatic
Length: 6~12M
Stack Thickness: 300mm

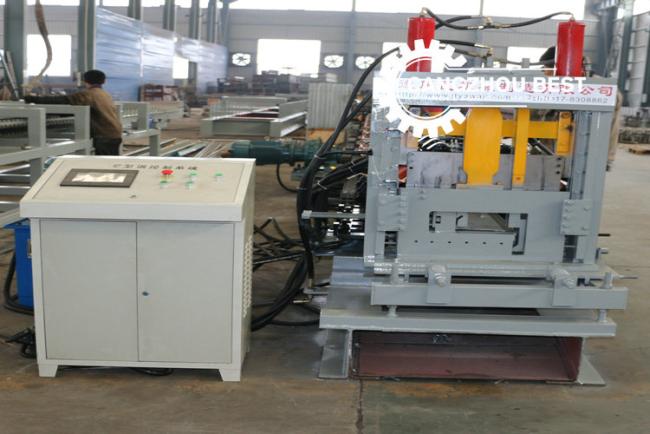

Machine Picture
