20mpa 18.5kw 10m/Min Floor Deck Roll Forming Machine

Price Negotiable

Price: USD$8000---12000

MOQ: 1 set

Delivery Time: 30 work days

Brand: BEST

Product Description

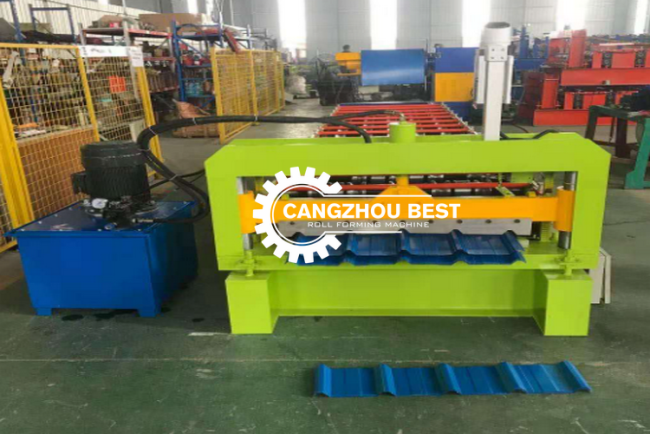

Floor Deck Roll Forming Machine

Model:688 Floor Deck

Configurations	Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Control System	PLC Panasonic Inverter
Main Frame	400mm H-Beam
Main Power	18.5 kw
Pump Power	7.5 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	8-10m/min
Roll Station	24 stands
Roller Diameter	95mm
Hydraulic Pressure	18-20MPa
Forming Size	688mm
Feeding Thickness	0.3-0.8mm
Feeding Width	1000mm
Backboard Thickness	22mm
Chain Size	66mm
Cutter Standard	Cr12
Roller Standard	Cr12
Cr-Plating Size	0.05mm
Overall Size	15000×1200×1100mm
Total Weight	19T

Suitable Material
Material Width		1000/1250mm
Effective Width		600/850mm
Material Thickness		0.8-1.5mm
Material Type		Galvanized Steel Strip,Prepainted Galvanised Steel
Yeild Strength		245Mpa
Main Machine
Size shaft diameter		95mm
Wall Panel Thickness		18mm
Base Specification		H446*199
Main Motor		37KW hydraulic system
Forming Speed		0-10m /min
Forming Station		33 Stations
Blade Material		Cr12(Die Steel)
Roller Material		45# steel,CNC lathes, Heat Treated,hard Chrome Coated
Mode of Speed Regulation		AC Inverter Speed Regulation
Driving Mode		Reduction Motor + Chain Transmission
Cutting Mode		Hydraulic Type,Post-cutting
Cutting Motor		Hydra station/hydraulic motor
Measuring Mode		Photoelectric Encoder
Control Mode		PLC
Operation Mode		Button+Touch Screen
Voltage		380V or 415V/50Hz/3Ph or 220V/60Hz/3Ph
Dimension		15 M1.5M1.3M
Machine Weight		16500KG(15500KG)
