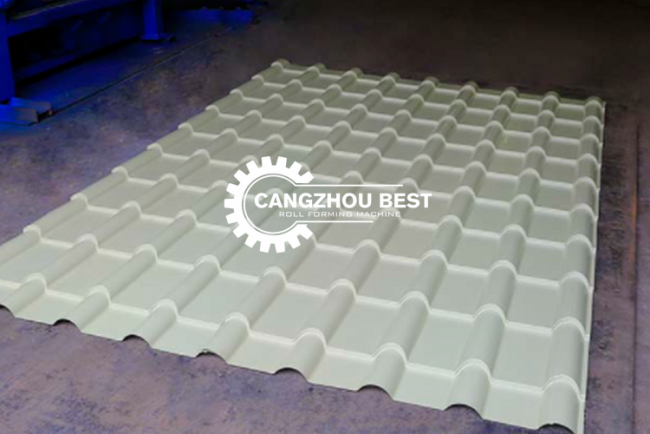

Metal GI 1.6mm 14m/Min Roof Tile Roll Forming Machine
♠color steel sheet roll forming machine can produce two designs,this machine process galvanized steel and color steel sheet,thickness is 0.3-0.7mm.
♠This color steel sheet roll forming machine the best advantage is save space.But three layers can not working in the same time.PLC can choose working by up layer,or down layer.
♠We can make color steel sheet roll forming machine as your request, our engineer will make drawings before you order.If you have drawing,please offer it to us,our engineer will confirm it and will give advise.
♠We are professional in color steel sheet roll forming machine,we have more than 20 years in this area.
| Item | Parameters |
| Processing Material | PPGI,GI |
| Processing Thickness(mm) | 0.6-1.6mm |
| Main Frame/Middle plate |
H400 Steel Beam/ 20mm Steel plate |
| Material of Rollers | 45# steel, with hard chrome coated |
| Diameter of Shaft | 100mm |
| Number of Rollers | 26 stand rollers |
| Production Speed | 0-14m/min |
| Roller Driven | Decelerating Motor+20A Chain Transmission |
| Cutting Model | Hydraulic Profile Cutting |
| Length Measurement | Encoder |
| Control Style | PLC |
| Operation Model | Button + Touch Screen |
| Total Power | 27.5kw |
| Voltage | 380V 50HZ or at buyer's request |
| Testing Material | Q195 |
| No. | Item | Specification | |
| 1 | Steel coil | Width | 914mm |
| Material | Ppgi/gi/gl/Alu-zinc | ||
| Thickness | 0.21-0.4mm | ||
| Hardness | Normal hardness/G550/HRB90 | ||
| 2 | Forming | Frame | 300-450mm Height |
| Stations |
As design of drawing Main: 13 stations |
||
| Rollers |
High grade No 45# steel with hard 0.05mm chromed |
||
| Shaft | High grade No 45# steel with
hard 0.05mm chromed |
||
| Diameter of shaft |
As design of drawing Main: 75 mm |
||
| Chain | Main: 1-1.5 inch | ||
| 3 | Control | PLC control | China/Taiwan/Japan/Germany brand |
| Main motor | Main: 4 kw | ||
| Language | English or as your request | ||
| 4 | Cutting | Cutter | High grade Cr12 steel |
| Cutting system | Hydraulic | ||
| Hydraulic pump | Main: 7.5kw | ||
| Cutter frame | Steel plate welding | ||
| 5 | Decoiler | Manual | 5 Tons |
| 6 | Product | Receiving table | Manual |
|
Choose us, own professional service. |
|||
|
No.
|
Double layer roll forming machine
|
|
|
1
|
Suitable material
|
Color steel sheet ,galvanized steel sheet, aluminium sheet
|
|
2
|
Width of material
|
1000mm
|
|
3
|
Thickness of material
|
0.3-0.8mm or as your needs
|
|
4
|
Working speed
|
10-20m/min
|
|
5
|
Electrical control system
|
PLC control system
|
|
6
|
Shaft diameter
|
80mm
|
|
7
|
Dimension
|
7500x1500x1910mm
|
|
8
|
Weight
|
About 7 T
|
|
9
|
Voltage
|
380V 3phase 50HZ or as the customer's requirements
|
|
10
|
Material of roller
|
High grade 45# forged steel plated with hard chrome plating
|
|
11
|
Material of cutting
|
Cr12 mould steel with quenched treatment
|
|
12
|
Working time
|
Can be 24 hours
|
|
13
|
Workers
|
1-2 only
|
