22kw Cold Anticollision Crash Barrier Roll Forming Machine
Anti-collision Higway Guardrail&Crash Barrier Cold Roll Forming Machine Manufacturing
Brief Introuduction
| Suitable Material | Colored or galvanized steel coil, HRB60 or equivalent |
| Thickness Range | 1-4mm |
| Coil Width Range |
According to your actual drawing. |
| Electric Power |
380V, 50 Hz, 3 phase or according to your need. |
| Dimension | About 9.2*1.3*1.1m(L*W*H), as per the drawing |
| Cutting | Automatically stop and cutting when it comes to the set length. |
| Length of the Sheet |
You can set the length according to your need. It is controlled by PLC |
Description
Hydraulic decoiler:
Steel coil width: from 1000 mm to 1250 mm;
Internal diameter of coil: variable, from 480 mm to 530 mm
Maximal out diameter:2000mm
Maximum coil weight: 5000 Kgs;
Coil placement in the coil holder: hydraulic hoist;
Pulling of steel from the coil to the pulling mechanism for the start: manual;
Suitable of the pulling mechanism for all required thicknesses: included;
Device preventing unwinding of the coil from the coil holder: included;
Uncoiled metal compensator: included, assures even feeding at all production speeds;
Oil cylinder dia:120mm
Working speed: 0-15m/min adjustable
Main motor power: 5.5KW AC motor
Hydraulic power: 4kw
Leveling
The quantity of leveler rolls must be planned according to thickness 2.0mm to 3.0 mm.
Flattener roller: upper is 3 rollers, down is 4 stations(total is 7 rollers)
Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.
Diameter of flattener shaft:￠70mm, material is SAE 1045, hardening and tempering
Punching:
Adopt Hydraulic punching
Diameter of cylinder￠140mm
Working pressure: 20mpa
The punches and dollies will be CR-12, hardness HRC 58-62
Hydraulic power :11KW
Dimensions: 1.5m* 1.1m* 1.2m

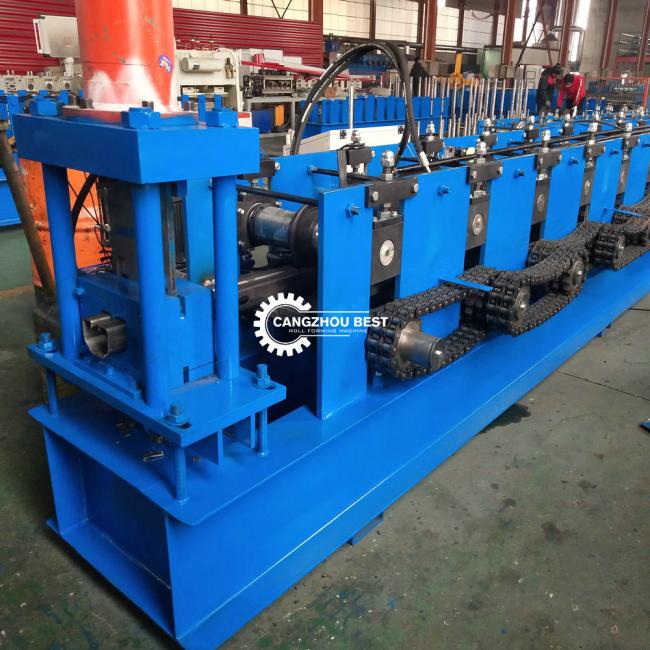

Forming section:
Main motor power : 55 kw
Cycloidal pin wheel reducer : BWD14-43-55KW,Place of Origin:Shanghai or Cangzhou
Transmission:Gear box【170#】
Shaft diameter: ￠110 mm material: SAE1045 with quenching and tempering
Roller material:ASTM1045 chrome plated surface with chrome
Forming station: about 16 stations (according the final design)
Machine roll forming speed :0m-15m/min(without punching)
Machine Voltage, Frequency:Japan Yaskawa(380 V, 50 Hz, 3Phase)

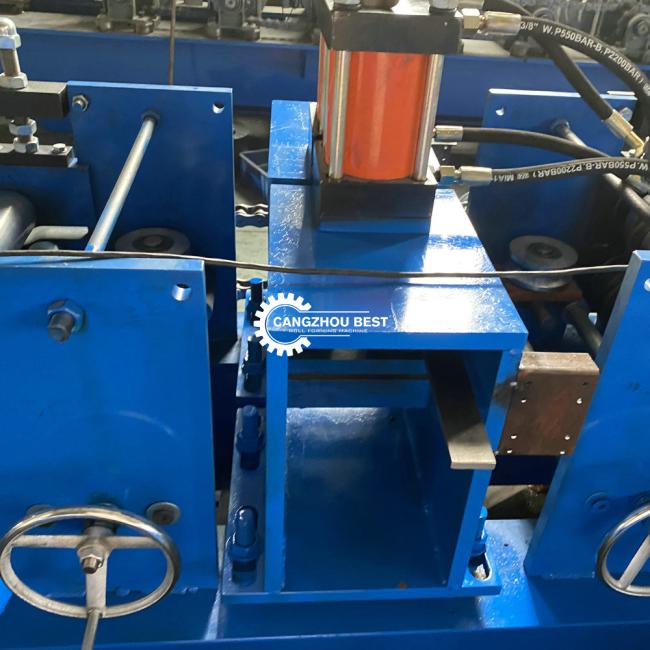

Cutting :
Shearing by hydraulic station
Material of blade:Cr12, 58-62 HRC hardness
Diameter of cylinder￠200mm
Working pressure:30mpa
Working range :80mm
Hydraulic station:
Hydraulic power: 11kW
Working pressure: 20-25Mpa adjustable
Solenoid valve: 3 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)
Control carbinet:
2)Automatic stopping of the equipment after completion of the cutting programme.
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview
