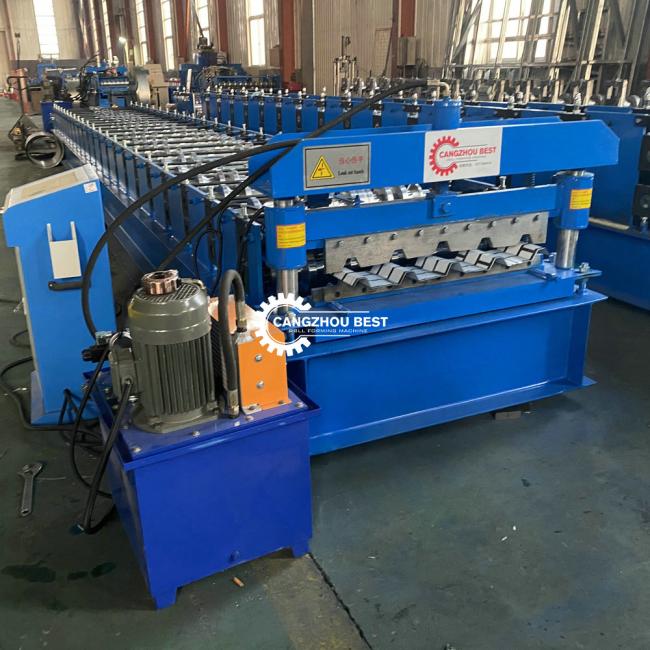

12m/Min Color Steel PLC Roof Sheet Roll Forming Machine For Building
Color Steel Roofing High Rib Profile Sheet Panle Roll Forming Machine For Building
1. Machine information:
The finished product of roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
2. Machine details:
| Name of Roll Forming Machine | High Rib Profile Sheet Panle Roll Forming Machine For Building | |
| 1 | Suitable raw material | PPGI/PPGL/GI/GL Steel Coils |
| 2 | Thickness of coil sheet | 0.3-0.8mm |
| 3 | Feeding Coil width | 914mm,925mm,1000mm,1200mm,1220mm |
| 4 | Effective width | 750mm |
| 5 | Under frame | 300H-beam |
| 6 | Diameter of Soild shaft | 70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway |

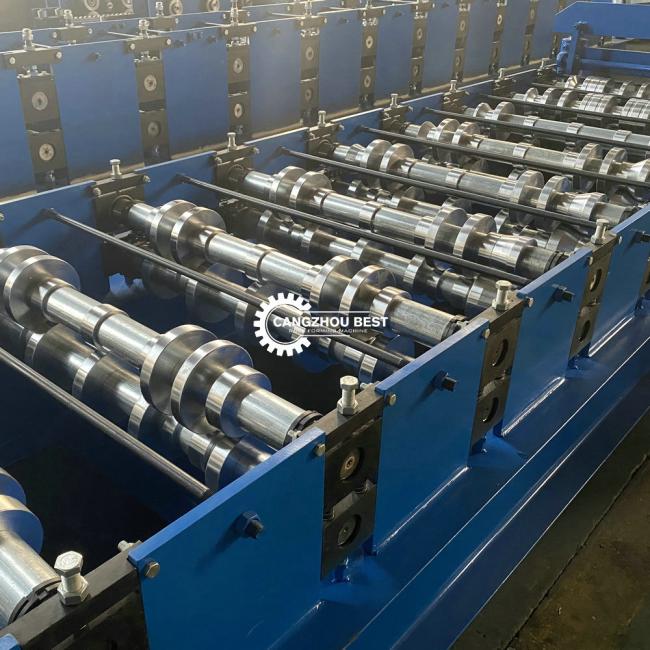

| 7 | Roller |
High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment, hard chrome coated 0.05-0.07mm |
| 8 | Thickness of middle plate | Guide pillar memorial archway |
| 9 | Forming stations | 13, accouding to profiel drawing |
| 10 | Drive type | By chain(1.0 inch) link bearing model 6210 |
| 11 | Power of main motor | 3kw with Cycloidal reducer, Lichao, Shanghai |
| 12 | Power of pump station | 3kw, Lichao, Shanghai |
| 13 | Forming speed | About 15-20m/min |
| 14 | Hydraulic cutting | Controlled by PLC |
| 15 | PLC | DELTA, TAIWAN / Mitsubishi, Japan |
| 16 | Material of cutting blade | Cr12Mov, quenching 58-62℃ |
| 17 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm). |
| 18 | Switch | CHNT |
| 19 | Transducer | SAJ |
3. Our service
1) Production Process:
Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving
2) Packing Method
Main machine is packaged with plastic film
3) Transportation
All machines need one 40 feet container to hold
4) Payment Term
30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.
5) Delivery Time
Within 35 days after receiving deposit.
6) Warranty
Two years, and we will provide technical support for wholelife of the equipment.
If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
4. Main Advantages
1) Young factory with advanced technology , and experienced Engineer , professional foreign trade team .
2) Standard design for your choose from , custom design also acceptable .
3) Adopt updated design and structure , making machine durable and better than always .
4) Short delivery time , free trainning , free technical support for whole life .
5) Futher research for local market , help client grow up and development .
We can produce according to your requirements.
