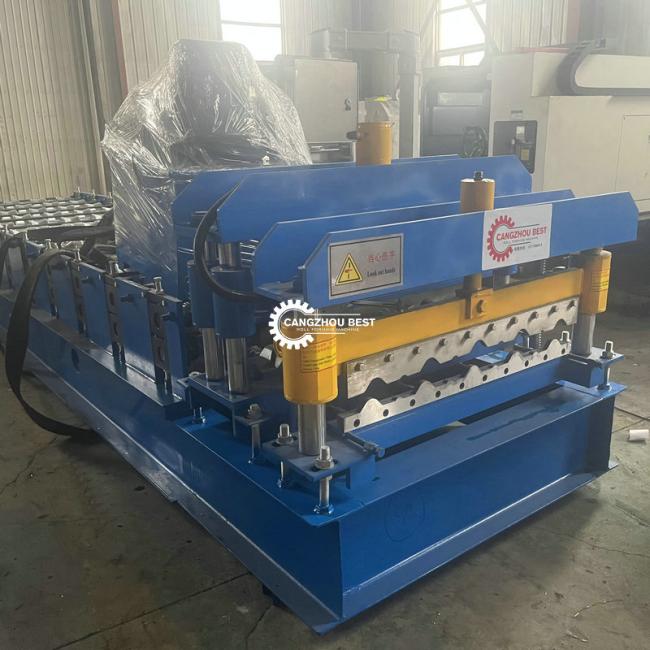

Color Steel 0.3mm Roof Tile Roll Forming Machine For Ibr Sheet
Price:
11500
MOQ:
1set
Delivery Time:
Negotiable
Brand:
BEST
Product Description
Color Steel Zimbabwe Popular Q Tile/IBR Roof Sheet Making Roll Forming Machine
The finished product of . Express Steel Profile Glazed Tile Roof Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. High Quality Color Steel Building Material Roll Forming Machinery.
Machine Specifications
| 1 | Coil Type | Pre-painted coil,Galvanized steel |
| 2 | Width | 914/1000/1200/1220mm |
| 3 | Thickness range | 0.3-0.8mm |
| 4 | Yield stress(mm) | Q235 |
| 5 | Effective width | 800/1000mm |
|
1 |
Power Requirement
|
Voltage | (380V 50HZ),or according client require |
| Main Motor power | 5.5kw | ||
| Cutter power | 3.0kw | ||
| 2 | Forming speed | 0-3m/min | |
| 3 | Forming stations | 13 rows | |
| 4 | Main Frame | 300H beam | |
| 5 | Sidewall thickness | 14mm | |
| 6 | Forming shaft diameter | 70mm 0.01mm-0.03mm(Grinding) | |
| 7 | Chains | 1inch chain drive | |
| 8 | Type of cutting | Roll formed and length-set cutting | |
| 9 | Control system | PLC control | |
| 10 | Install dimension(depend on the final design) | 8.0m×1.5m×1.3m | |
| 11 | Total weight (Approx) | 4.0T | |
| 12 | Roller | High grade 45# steel, hard chrome plated | |
| 13 | Feeding system | Guide type | |
| 14 | Cutting blade | Cr12 | |
| 15 | Frequency changer |
Delta |
|
Manual Decoiler
1.Work type: passive type
2.Structure: Steel channel welded for the basic frame
3.usage:To support the coil and make the uncoiling
4.Loading capacity: 5 tons
5.Inner diameter: 450-550mm (manual adjustment)
6.Coil width: 1250mm
7.Brake system: manual brake
2.Structure: Steel channel welded for the basic frame
3.usage:To support the coil and make the uncoiling
4.Loading capacity: 5 tons
5.Inner diameter: 450-550mm (manual adjustment)
6.Coil width: 1250mm
7.Brake system: manual brake
Main forming machine parameters
1.Feeding device
One set guiding roller
Steel plate welded platform to carry the sheet and feed into roll forming system
Feeding width is adjustable with the handle wheels
2.Rolling shaft
One set guiding roller
Steel plate welded platform to carry the sheet and feed into roll forming system
Feeding width is adjustable with the handle wheels
2.Rolling shaft
Shaft material:45# STEEL
Shaft diameter: 70 mm
Tempering treatment to prevent deformed and improve hardness
3.Roller
Shaft diameter: 70 mm
Tempering treatment to prevent deformed and improve hardness
3.Roller
Shaft material:45# steel
Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
Rolling station:13 rolling stations
Work speed: 0-3 m/min
Machine structure:Steel plate welded structure
Machine basic frame:50# H steel welded
Work power:5.5 kw
Rolling spacer: Anti rusty treatment
Pull rod: Anti rusty treatment
4.Transmission
Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
Rolling station:13 rolling stations
Work speed: 0-3 m/min
Machine structure:Steel plate welded structure
Machine basic frame:50# H steel welded
Work power:5.5 kw
Rolling spacer: Anti rusty treatment
Pull rod: Anti rusty treatment
4.Transmission
By Chains with cover
Noted: please fill the lube in case the chains getting dry
Noted: please fill the lube in case the chains getting dry
PLC Control System
Frequency brand: Delta (original)
PLC brand: Delta (original)
Frequency brand: Delta (original)
Screen type: Touch screen, also have buttons on the panel
Screen language:English/Chinese
Cut command: Yes
Profile length set-up: Yes
Batch quantity program: Yes
Low pressure electric part: Schneider brand
Encode: Omron brand
PLC brand: Delta (original)
Frequency brand: Delta (original)
Screen type: Touch screen, also have buttons on the panel
Screen language:English/Chinese
Cut command: Yes
Profile length set-up: Yes
Batch quantity program: Yes
Low pressure electric part: Schneider brand
Encode: Omron brand
