Villa House Roof Parts Vertical Wall Flashing Board 1050mm width

Asa Synthetic Roof Sheet House Roof Parts Vertical Wall Flashing Board Roof Accessories

Applications:

residential homes ,villa , pavilions ......

Specification :

Thickness: 3.0mm

Total width : 1050mm ; effective width: 960mm ;

Wave height : 30mm ; wave span : 160mm ; wave pitch : 220mm

Length : customized but must be a multiple of wave pitch.

Color : dark red ; brick red ; gray ; jasper ; blue

Installation:

1. Purlin stick or square pipe (60*40*3mm), C type steel (100*50*20cm*3mm) and anti-corrosive wood (60*40mm)

2. Purlin spacing 660 mm and rowing up and down

3. The installation to be against the windy direction and two side’s installing at the same time

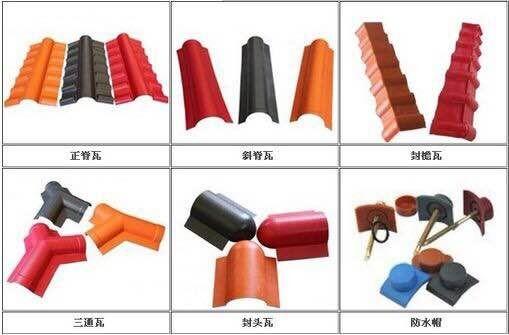

4. The first pieces of main ridge tile have to cut it before install it

5. The lap joint between main ridge tile and tilted ridge tile to be alignment before the three way installed. To Drill a hole size of bigger than 2mm for the screw

6. The diameter of the tapping screw suggest as 6.3 mm
