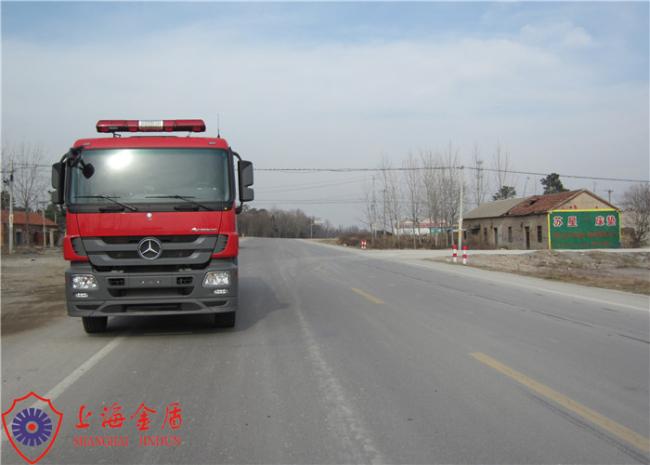

High Capacity Pumper Stainless Steel Water Tanker Fire Trucks Power 265KW
Price:
Factory price, Negotiable
MOQ:
1 unit
Delivery Time:
90 days after sign contract
Brand:
CIMC Jindun
Product Description
High Capacity Pumper Stainless Steel Water Tanker Fire Trucks Power 265KW
Vehicle
| Dimension (L×W×H) | 9720×2500×3700 (mm) |
| Gross weight | 28000 (kg) |
| Complete vehicle shipping mass | 15350 (kg) |
| Seat (inc. driver) | 2 |
| Max. power | 265kw |
Chassis
| Manufacturer | Daimler |
| Model | Actros3336 |
| Drive type | 6x4 |
| Cab | Flattop Four door lengthen cab |
| Wheelbase | 4500+1350mm |
| Max. speed | 95km/h |
| Min. turning diameter | ≤21m |
| Approach angle | 17° |
| Departure angle | 13° |
| Engine type | In-line six-cylinder, turbo inter-cooling, electronic unit pump diesel engine |
| Model | OM501LA.IV/2 |
| Max. torque | 1850N.M |
| Emission standard | China IV/euro IV |
| Clutch | Monolithic, Dry |
| Gearbox | Manual, 16 forward gear |
Pump drive system
| Model | NMV200 |
| Transmission shaft | High balance precision transmission shaft, use intermediate support connection |
Side girder
Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
FAQ
| 1, Q: Why should we choose you ? |
| A: We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting. |
| B: We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur |
| C: We have our own R&D team, production workshop, QC management team, international marketing team and after service team. |
| D: We will provide the most professional and the best service on every business discussion and operation procedure. |
| E: We can provide special design for different specification requirement according to different orders or tender documents. |
| G: We have jointed ventures with Morita for 4 years, so the technology, design and quality are same with Morita. |
| H: We have collaboration with various top enterprises of fire protection sector, Such as Darley, Rosenbauer, HALE, AKRON, Ekhart, etc. |
| I: Our Certifications: ISO, TUV, CCCF, SONCAP, CNAS, SGS,MH /T5002-9, MEP, CQC. |
| 2, Q: What's your Payment method? |
| A: T/T 30% deposit, balance will be paid by T/T before delivery |
| B: 100% L/C before start production |
