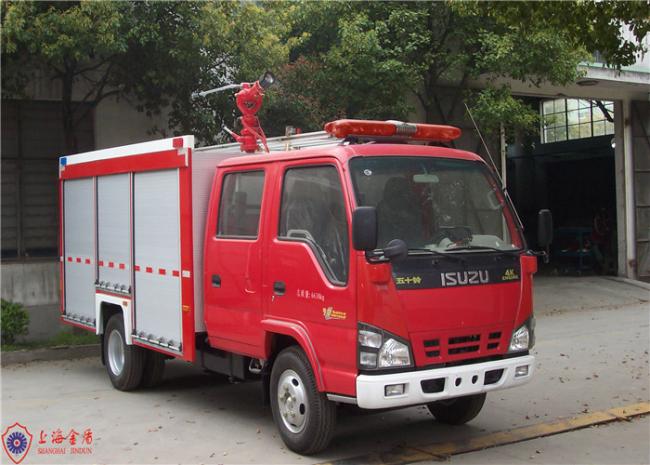

4x2 Drive Water Tanker Fire Truck ISO9001 Approved With Water Cooling Engine
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
90 days after sign contract
Brand:
CIMC Jindun
Product Description
4x2 Drive Water Tanker Fire Truck ISO9001 Approved With Water Cooling Engine
Chassis
| Manufacturer | ISUZU |
| Model | QL1070A1HWY |
| Drive type | 4x2 |
| Cab | Equipped with 3 air resporator |
| Wheelbase | 3360mm |
| Chassis net weight | 2070kg |
| Max. allowable load | 6725kg |
| Max. speed | 105km/h |
| Min. turning diameter | ＜13.6m |
Vehicle
| Dimension (L×W×H) | 6255×1945×2940 (mm) |
| Gross weight | 6630(kg) |
| Complete vehicle shipping mass | 4255 (kg) |
| Extinguishant capacity | Water: 2000L |
| Seat (inc. driver) | 2+3 |
| Max. power | 88/2900 kw/hp |
| Engine type | In-line six-cylinder, four-stroke, water cooling, turbocharged engine |
| Model | 4KH1-TCG40 |
| Max. power | 88Kw/ 2900rpm/min |
| Max. torque | 290N.M/1500rpm |
| Emission standard | China IV |
| Clutch | Monolithic, dry, diaphragm spring, hydraulic control |
| Gearbox | MSB manual |
Pipeline
| Outlet pipeline | 2×DN65 ordinary pressure outlet |
| Suction inlet |
1×DN100 suction coupling with lip cover 1×DN150 manual butterfly valve |
| Filling pipe end |
1×DN65 outside filling pipe end 1×DN40 filling pipe end with valve |
| Residual water outlet | Water cock |
| Cooling water | Cooling installation |
Onboard document
- Vehicle operation and maintenance manual
- Chassis operating manual
- Chassis operation and maintenance manual
- Chassis quality warranty card
- Chassis certificate, vehicle certificate, 3C logo
- Engine code copy
- Chassis code copy
- Onboard equipment list
- Follow-up service card
