135kw 3500L Tank Capacity Foam Fire Truck Firefighting Throw Range Over 50 Meters
135kw 3500L Tank Capacity Foam Fire Truck Firefighting Throw Range Over 50 Meters

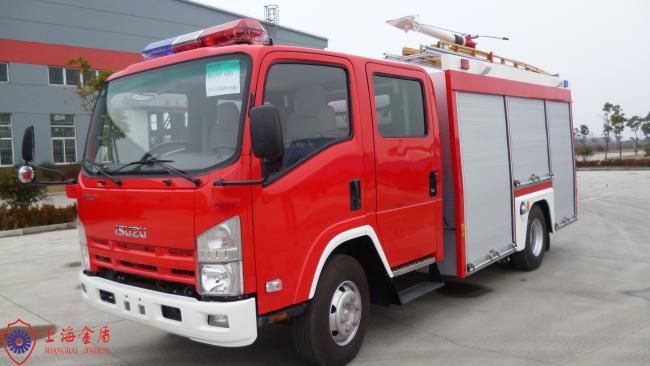

JDX5100GXFPM35/B foam fire truck adopts QL11009KARY ISUZU chassis, USA HALE AP32 fire pump, USA AKRON 3430 fire monitor and other fire-fighting equipment. The vehicle has the features of a good structure and reasonable layout, easy operation and maintenance. It's usually used by public security fire brigades in large and medium cities, petrochemical companies and airports and other professional fire brigade.
I. Main performance parameters:
1. The whole vehicle
| Dimensions (mm) | 6870X2240X3040 |
| Full load permissible weight (kg) | 10000 |
| Vehicle total weight (kg) | 6125 |
| Fire-extinguishing agents: water + Foam | water + Foam:3500kg |
| Number of passengers (incl. driver) | 5 |
| Max. Power (kw/hp) | 139kw/189hp |
2. Chassis
| Name | ISUZU chassis |
| Model | QL11009KARY |
| Drive Type | 4x2 |
| Cab | double cabin (1 + 1 + 3), the rear seat backrests fit with three fixtures for putting Self Contained Breathing Apparatus. |
| Wheelbase | 3815mm |
| Chassis weight | 2970Kg |
| Max. permissible load | 7030Kg |
| Maximum speed | 110Km/h |
| Min. turning diameter | diameter:＜15.2m |
| Engine | Inline four-cylinder, water-cooled, electronically controlled two-stage, high-pressure common-rail, turbocharged, intercooled, diesel engine electronic control |
| Type | 4HK1-TCG40 |
| Max. power | 139Kw/ 2600r/min |
| Max. torque | M/1600rpm |
| Emission standard | China Ⅳ |
| Clutch | Single, dry, diaphragm spring, oil and gas booster |
| Gearbox | MLD-6Q |
| Fuel | 100L |
