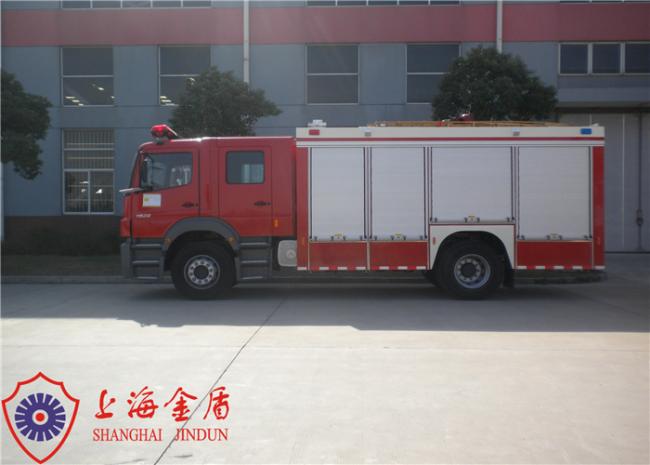

Max Speed 100KM/H Foam Fire Truck Adjustable Seats With 4500 Water 1500 Foam
Max Speed 100KM/H Foam Fire Truck Adjustable Seats With 4500 Water 1500 Foam
Vehicle
| Overall Dimension | 8500x2500x3500 mm |
| Gross weight | 16800 kg |
| Capacity of extinguishing agents | 4500L water, 1500L foam |
| Number of crew | 6, include driver |
| Emission standard | Euro 4 |
Chassis
| Manufacturer | Mercedes Benz |
| Model | Axor1829 (Imported from Germany) |
| Driving type | 4×2 |
| Wheelbase | 4500 mm |
| Max. speed | 100km/h |
| Engine type | Benz OM906 LA ( Euro 4) |
| Type | inline, 6 cylinder, turbine, increasing pressure, medium cooling diesel engine, electronic unit pump, Benz direct injection system |
| Rated power | 210kw (286PS)/2200rpm |
| Max. torque | 1120N.M/1200-1600rpm |
| Displacement | 6.374 L |
| Gearbox type | Benz G131-9, full synchronous 9 forward gears |
| speed ratio | 14.57-1.0, 1 reverse gear |
| PTO type | Benz MB131-2c |
| Tire type | 295/80 R22.5 |
| Max. admissible total weight | 18000kg |
| Outline | ≤8600X2500X3600mm |
Cab and crew department:
Seats: 2+4, two seats in front and four at rear, four-point suspension, heated back mirror, electrically adjustable.
Equipment:adjustable seats for driver and co-driver, electric windows, CD radio, air-conditioner system, dust filter etc.
Water pump
| Pump manufacturer | U.S.A. HALE |
| Model | 50FB-U HALE |
| Pressure/Rate | 1.0Mpa/3600L/min |
| Vacuum pump type | ESP electric vacuum water pump |
| Vacuum degree | ≥85kPa |
| Suction depth | ≥7M |
| Priming time | ≤50s |
Foam Proportioner:
| Model | PH48 |
| Type | Manual proportioner |
| Mixed rate | 3%,6%； |
Pipeline system:
- Material of pipework: all water piping and pump connection are made of corrosion resistant hot-dip galvanized steel, rigid rubber hoses and flexible rubber joints.
- Suction Inlet: DN150 suction inlet mounted at each side of pump room, with DN150 butterfly valve, pneumatically operated, for connecting the water tank.
- Outlet pipeline: DN80 and DN65 normal pressure outlet mounted at both sides of the vehicle, with butterfly valve for each side.
- Supply line to monitor: a DN100 pipeline, connected to the roof monitor, controlled by DN100 butterfly valve.
Ø Surplus water discharge pipeline: to protect the water pump and valve, installed surplus water discharge ball valve in the pipeline.
- Cooling water pipeline: to protect P.T.O for normal work, installed additional cooling device in the pipeline.
FAQ:
1. Q:Are you a factory or a trade company?
A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest factories for special vehicles in China.
2. Q:Where is your factory located?
A:We are located in Shanghai Province,China.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
6. Q: What's your main product?
A: Our main product include : water & foam tank trucks, CAFS fire trucks, chemical fire trucks, emergency rescue vehicles, lighting trucks, aerial ladder and platform trucks, airport fire trucks, water tower fire trucks and other general fire trucks. The products have been sold to more than 20 countries.
Any other questions, please do not hesitate to contact with us.
