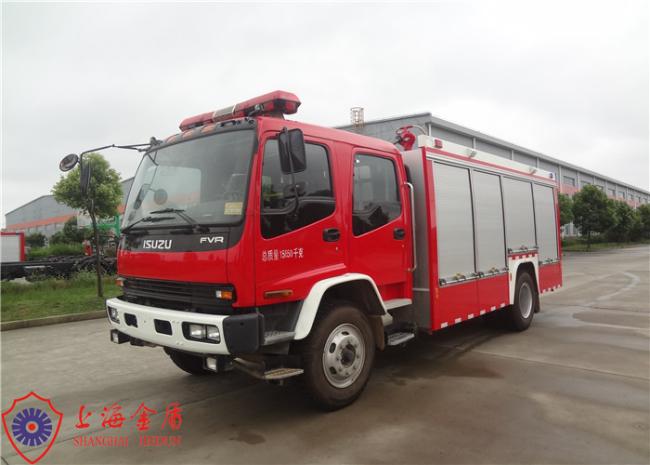

Gross Weight 16000kg 4500L Water Container CAFS Fire Pumper Truck A Class Foam
Gross Weight 16000kg 4500L Water Container CAFS Fire Pumper Truck A Class Foam
Compressed air foam systems (CAFS) are, without a doubt, the most significant innovation in fire suppression technology since the horse-drawn pumper. It has changed the way fires are attacked, how quickly fires can be extinguished and vastly limits the damage that fires can inflict. No one understands this better and pushes the potential of CAFS further than us. For 15 plus years, we has led the charge in CAFS deployment and development worldwide.
| AP50W Main engines Technical Data | ||
| Item | Unit | Parameter values |
| Overall | ||
| length | mm | 8160 |
| height | mm | 3400 |
| width | mm | 2480 |
| Weight Parameters | ||
| Gross weight | kg | 16000 |
| Curb weight | kg | 9870 |
| Running Parameters | ||
| Max. speed | Km/h | 95Km/h |
| Min. turning radius | m | ≤15.6 |
| Chassis Model | - | QL1160AMFRY |
| Cab | - | Double cab |
| Seats | 1+1+4 | |
| Wheelbase | mm | 4500 |
| Engine Model | - | 6HK1-TCNG40 |
| Max. power | kw | 177kW/ 2400r/min |
| Max. torque | N.m | 706N.m/1450rpm |
| Key Performance Data | ||
| CAFS system | HALE PTO CAFS120 | |
| Rated flow rate | LPM | 950 (15.8 L/S) |
| Pressure | bar | 10 |
| maintenance-free Electric vacuum pump | ESP-24V | |
| Priming Time | S | ≤50 |
| Max. suction | m | 7 |
| Air compressor | Tempest 6 | |
| Airflow rate | CFM | 120(56.6 L/S) |
| Rated revolution | RPM | 2640 |
| Rated power | KW | 26 |
| Foam proportioner | Foamlogix 3.3 | |
| Max. foam concentrate flow | GPM | 3.3(12.5 L/Min) |
| Foam discharge rate | 0.1％－10％ | |
| Rated voltage | DC24V | |
| Compressed air foam type | Dry foam,medium expansion foam,wet foam | |
| Fire monitor |
US Elkhart Brass |
|
| Rated flow rate | l/min | 3600@10bar |
| Throw range | m | Water≥65m Foam≥55m |
| Rotation Angle | pitching: —15° to +90°；level: 360° | |
| Fluid container | 304 | |
| Fluid container capacity | L | water:4500 foam:400 |
| Pump room | Q235AHigh quality profiles combined with aluminum alloy | |
| Winch Model | US Champion N12000 | |
| Rated power | KW | 10 |
| Engine | Honda GX620 | |
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
