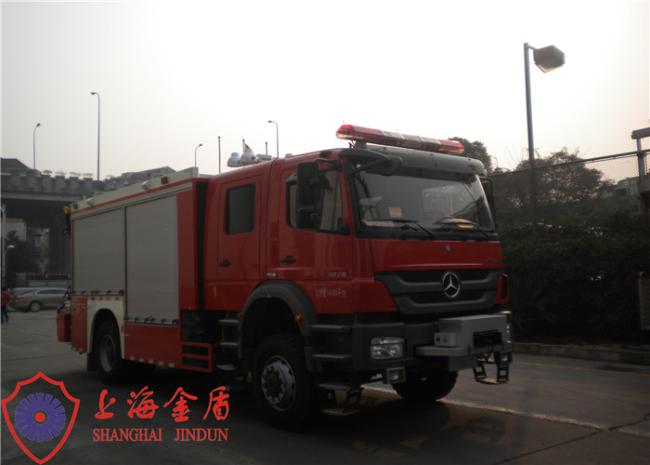

Six Seats Emergency Fire Pumper Truck , Direct Injection Engine Industrial Fire Truck
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
90 days after sign contract
Brand:
CIMC Jindun
Product Description
Six Seats Emergency Fire Pumper Truck , Direct Injection Engine Industrial Fire Truck
Vehicle
| Dimension (L×W×H) | 8880×2500×3500 (mm) |
| Gross weight | 14900 (kg) |
| Complete vehicle shipping mass | 14450 (kg) |
| Rescue equipment quantity | 100pcs |
| Seat (inc. driver) | 2+4 |
| Max. power | 214kw |
Chassis
| Manufacturer | Daimler |
| Model | AXOR 1829 |
| Drive type | 4x4 |
| Cab | Crew cab |
| Wheelbase | 4500mm |
| Max. loading weight | 18000kg |
| Max. speed | 100km/h |
| Min. turning diameter | <16.5m |
| Engine type | In-line six-cylinder, inter-cooling, direct injection |
| Model | OM906LA.IV/3 |
| Max. power | 214kw |
| Max. torque | 1120N.M |
| Emission standard | China IV |
| Clutch | Monolithic, dry |
| Gearbox model | G131-9 |
| Type | Manual |
Lift lighting system
| Manufacturer | Zhejiang Senken |
| Model | SG55-4600F1 |
| Lifting height | 5.5m |
| Above ground level | ≥6.6m |
| Control system working pressure | DC24V |
| Lamps working pressure | 220V |
| Lamps power | 4×600w |
| Lamps horizontal rotating angle | 380° |
| Lamps vertical rotating angle | 330° |
Electric generator
| Model | EH3135 BINSON |
| Rated output power | 13.5kVA |
| Max. output power | 14.5kVA |
| Power factor | 0.8 |
| Voltage | 380/220V |
| Electricity current | 16.5A/per phase |
| Frequency | 50HZ |
| Fuel | Petrol |
Side girder
Features: made of welding high quality profiled steels, two longitudinal beams through a plurality of beam intensity bearing joint of high strength bolt connection. The side beam is installed, use girder structure, to ensure that the original car beam of uniform stress, improve the service life of the girder, and reduce deformation caused by components twisted.
