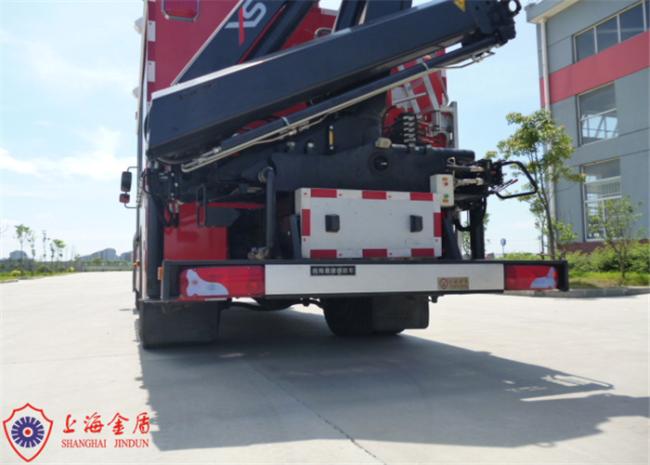

213kw Six Seats Emergency Rescue Vehicle Equipped Rescue Crane on Rear
Price:
Negotiable
MOQ:
1 unit
Delivery Time:
90 days after sign contract
Brand:
CIMC Jindun
Product Description
213kw Six Seats Emergency Rescue Vehicle Equipped Rescue Crane on Rear
Vehicle
| Dimension (L×W×H) | 8655×2500×3500mm |
| Gross weight | 13066kg |
| Complete vehicle shipping mass | 12616kg |
| Rescue equipment quantity | 100pcs |
| Seat (inc. driver) | 2+4 |
Chassis
| Manufacturer | MAN |
| Model | TGM 18.290 |
| Drive type | 4x2 |
| Cab | Crew cab |
| Wheelbase | 4425mm |
| Max. total mass | 18000kg |
| Max. speed | 96km/h |
| Min. turning diameter | <15.6m |
| Engine type | In-line six-cylinder, inter-cooling, high pressure common rail, electronic control |
| Model | D0836LFL30 |
| Max. power | 213kw |
| Max. torque | 1150N.M |
| Emission standard | China IV |
| Gearbox model | ZF 9S-1310 OD Manual |
Electrical system
The main lights in the cab at the top of the long row of lights, configure the 100W alarm control system; a strobe lights installed on both sides and the middle of each compartment (two red and blue), on both sides of the vehicle is provided with LED side lights installed below the rear side marker lamps, after the installation of the contour light.
Painting
Red paint: cab, body (shutter doors, except decorative strip)
White paint: rear bumpers (steel parts), fenders, roof railing
Onboard document
- Vehicle operation and maintenance manual
- Chassis operating manual
- Chassis operation and maintenance manual
- Chassis quality warranty card
- Chassis certificate, vehicle certificate, 3C logo
- Engine code copy
- Chassis code copy
- Onboard equipment list
- Follow-up service card
- Hand-over list
