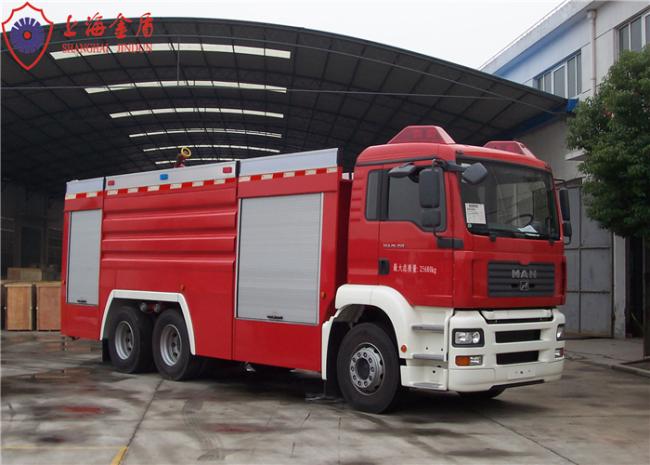

6x4 MAN Chassis Water Tanker Fire Truck With Direct Injection Diesel Engine
6x4 MAN Chassis Water Tanker Fire Truck With Direct Injection Diesel Engine
Vehicle
| Dimension (L×W×H) | 10180×2500×3650mm |
| Gross weight | 33320kg |
| Complete vehicle shipping mass | 15270kg |
| Seat (inc. driver) | 6 |
| Max. power | 276kw |
Chassis
| Manufacturer | Sinotruk HOWO |
| Model | ZZ5347V4647D5 |
| Drive type | 6x4 |
| Cab | Flattop four door length |
| Wheelbase | 4600+1350mm |
| Max. speed | 85km/h |
| Min. turning diameter | <22m |
| Approach angle | 16° |
| Departure angle | 12° |
| Engine type | Pressure combustion, in-line six-cylinder, water cooling, inter-cooling, direct injection diesel engine |
| Model | D10.38-40 |
| Max. power | 276kw |
| Max. torque | 1560N•m |
| Emission standard | China IV/ Euro IV |
| Clutch | Monolithic, dry |
| Gearbox model | Manual 10forward gear |
Pump drive system
| Model | NMV200 |
| Transmission shaft | High balance precision transmission shaft, use intermediate support connection |
Fire monitor
| Model | POK, PLC6000 |
| Position | At the top of rear vehicle |
| Flow | 1.0MPa/80L/s |
| Range | water≥80m ,foam≥50m |
| Rotation angle | Level≥270° |
Pedal plate
Location: At the bottom of roller shutter door.
Material: Steel frame covered by aluminum alloy checkered plate.
Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal plate bearing ≥150Kg.
FAQ
1. Q: Why should we choose you ?
A: a. We are professional manufacture located in Shanghai city for firefighting trucks products which nearby Pudong International Airport, is easily for customer coming and visiting.
b. We can export directly to overseas customer, no need to deal with trading company and the second price increase will not occur.
c. We have our own R&D team, production workshop, QC management team,international marketing team and after service team.
2. Q:What's the delivery time?
A: a. 20 days delivery upon receipt of advance deposit if we have ready in stock for normal standard model.
b. ISUZU & Chinese brand chassis 3 months upon receipt of advance deposit.
c. European brand chassis 9 months upon receipt of advance deposit.
3. Q:What's your payment method?
A: T/T and L/C are preferred.
4.Q:Do you arrange shipment for the vehicles?
A:Yes, we can arrange shippment based on trade terms.
5. Q: How is the packing?
A:All the packing comply with exporting standard.
Any other questions, please do not hesitate to contact with us.
